1
Engine displacement
500
2
Year
2004
3
Trim
A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX
4
Parts Catalog

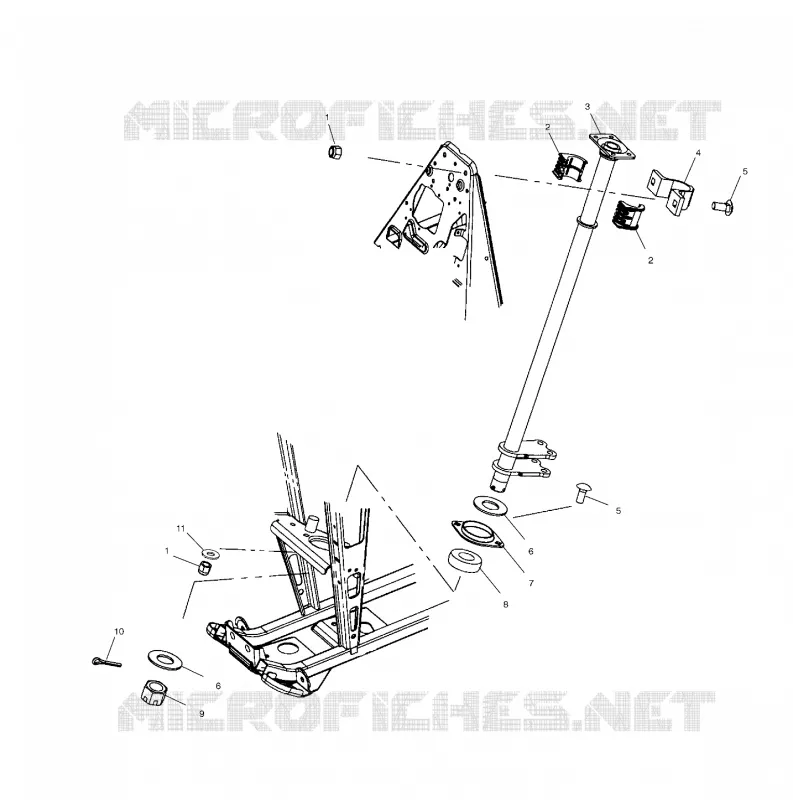

STEERING POST
5
Parts Diagram
Parts Catalog
INLET EXHAUST
by
FRONT WHEEL
STEERING POST
1
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
Bushing Steering Upper
5433866
5439731
$12,59 Unit Price incl. VAT
3
Post Steering [If built after 1/05/04]
1822630067
2202825
$419,99 Unit Price incl. VAT
3
Post Steering
1013920067
2202825
$419,99 Unit Price incl. VAT
4
Bracket Bushing Steering Upper
5246732
5257028
$62,99 Unit Price incl. VAT
5
SCR-RHCAR-5/16-18X0.75GR5ZY3
7517428
$4,19 Unit Price incl. VAT
6
BUSHING-1X1 1/2X .145
7556162
$7,34 Unit Price incl. VAT
7
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
8
Bearing
3514352
3514617
$54,59 Unit Price incl. VAT
9
Nut Slotted Hex
7547158
Not Available
10
Pin Cotter
7661633
Not Available
11
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
