1
Engine displacement
500
2
Year
2004
3
Trim
A04CH50AQ SPORTSMAN 500 - A04CH50AO/AQ/AR/AS/AT/AV/AW/AX
4
Parts Catalog

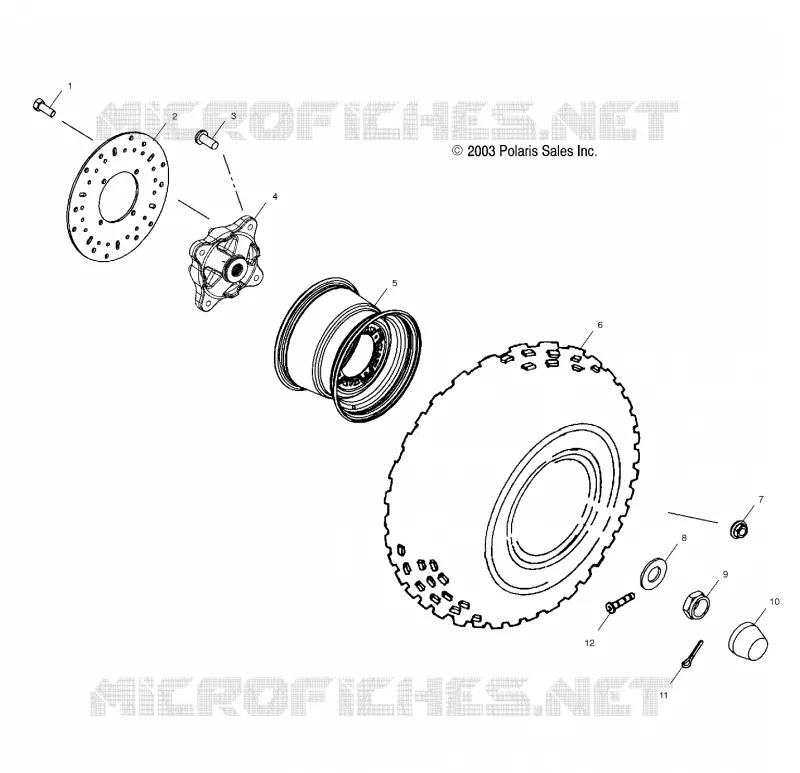

FRONT WHEEL
5
Parts Diagram
Parts Catalog
STEERING POST
by
REAR WHEEL DRIVE
FRONT WHEEL
1
2
3
4
4
5
5
5
5
6
6
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
1
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
2
DISC-BRAKE 8.95 OD .158
5244314
$141,74 Unit Price incl. VAT
3
STUD(10)
7515513
$2,09 Unit Price incl. VAT
4
Hub Wheel (If built after 5/01/02)
5133360
Not Available
4
Hub Wheel AWD
5134310
5143612
$157,49 Unit Price incl. VAT
5
Rim Front (AB)(If built before 1/12/04)
1520696455
Not Available
5
Rim Front Silver
1520563385
1523448-067
$158,54 Unit Price incl. VAT
5
Rim Front Black [AD][AL]
1520563067
1523448-067
$158,54 Unit Price incl. VAT
5
Rim Front Shadowgrass [AV](If built before 1/12/04)
1520696456
1523451-067
$168,30 Unit Price incl. VAT
6
Tire Front [25x8-12]
5412396
5419027
$153,29 Unit Price incl. VAT
6
Tire Front 205/80R12
5412564
Not Available
6
Tire [25x8-12]
5411952
Not Available
7
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
8
WASHER
7556004
$13,64 Unit Price incl. VAT
9
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
10
DUSTCOVER HUB
5411164
5413427
$52,49 Unit Price incl. VAT
11
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
12
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
