1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48" TRAIL PACKAGE
4
Parts Catalog

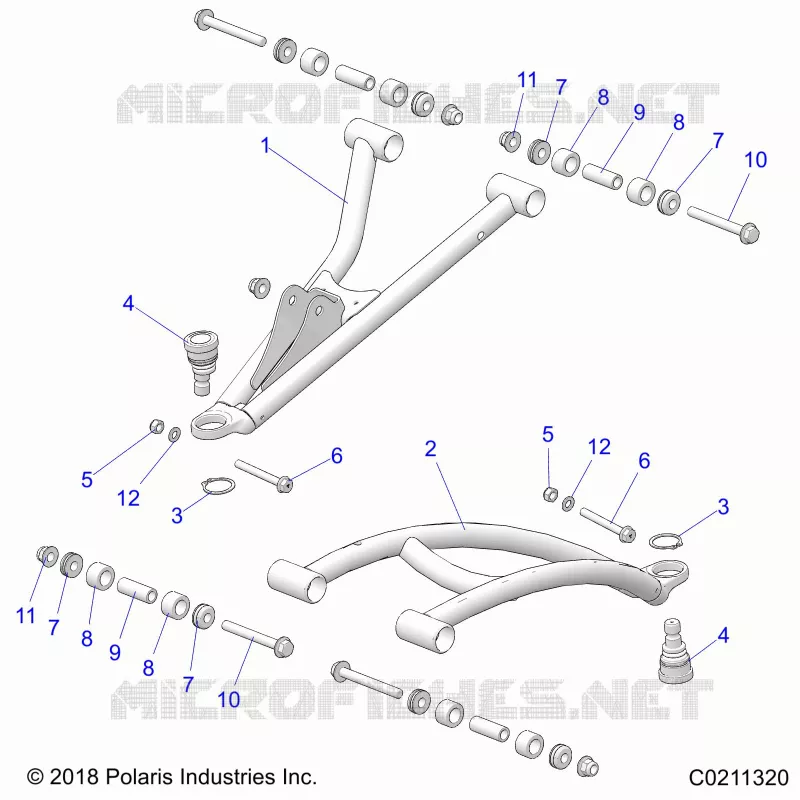

FRONT SUSPENSION A-ARMS
5
Parts Diagram
Parts Catalog
STEERING POST ASM.
by
REAR SUSPENSION CONTROL ARMS- A20SXZ95AG (C0211319)
FRONT SUSPENSION A-ARMS
1
WELD-UCA SEAL FRONT RH BLK [TO 9/16/2019]
1023456067
1025345-067
$241,49 Unit Price incl. VAT
1
WELD-UCA SEAL FRONT RH BLK
1025345067
$241,49 Unit Price incl. VAT
1
WELD-UCA SEAL FRONT LH BLK
1025344067
$241,49 Unit Price incl. VAT
1
WELD-UCA SEAL FRONT LH BLK [TO 9/16/2019]
1023455067
1025344-067
$241,49 Unit Price incl. VAT
2
WELD-LCA FRONT RH BLK
1023372067
$246,74 Unit Price incl. VAT
2
WELD-LCA FRONT LH BLK
1023371067
$246,74 Unit Price incl. VAT
3
RING-RETAINER EXTERNAL 1.188
7710533
$4,19 Unit Price incl. VAT
4
JOINT BALL LONG STUD
7061220
$141,74 Unit Price incl. VAT
5
NUT-M8X1.25C10 HX NYL DIN982 Z
7547405
$2,09 Unit Price incl. VAT
6
SCREW M8x65
7519212
$9,44 Unit Price incl. VAT
7
ASM-PIVOT CAP SEALED M10
1543611
$10,49 Unit Price incl. VAT
8
BUSHING-STANDARD SUSP M10
5452233
$5,24 Unit Price incl. VAT
9
SHAFT-PIVOT SHORT M10 43MM
5141292
$8,39 Unit Price incl. VAT
10
SCR-HXFL-M10X1.5X85 8.8 ZY3
7518466
$9,44 Unit Price incl. VAT
11
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
12
WASHER FLAT
7556557
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
