1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XCR 136
4
Parts Catalog

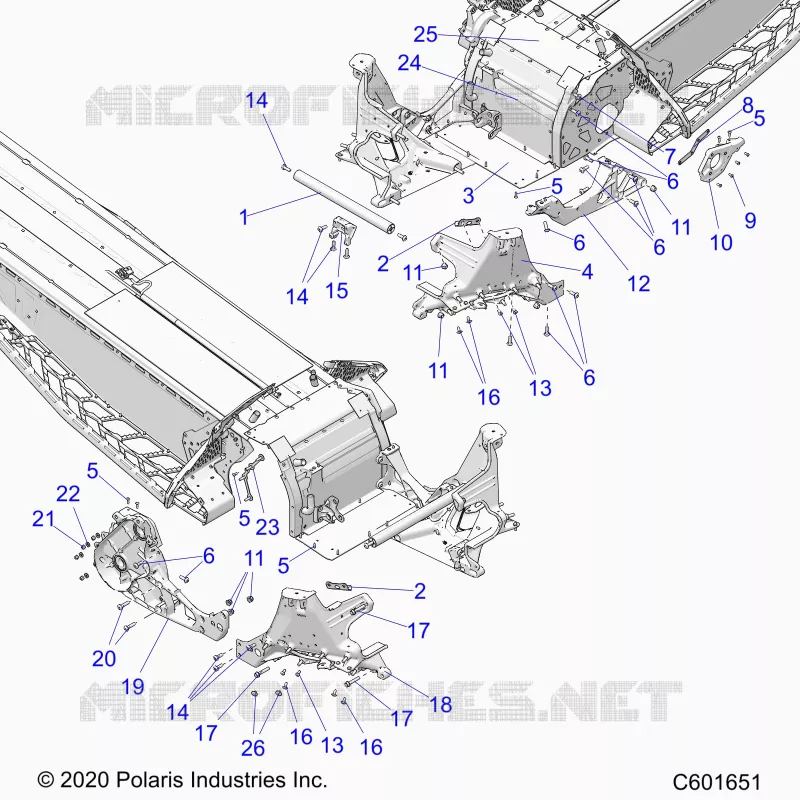

CHASSIS, BULKHEAD ASM.
5
Parts Diagram
Parts Catalog
BRAKES, MASTER CYLINDER ASM.
by
CHASSIS, TIE ROD BOOT ASM.
CHASSIS, BULKHEAD ASM.
-
-
-
1
2
2
3
18
18
5
5
5
5
5
6
6
6
6
6
7
8
9
10
11
11
11
11
12
13
14
14
14
15
16
16
16
17
17
17
18
18
19
20
21
22
23
24
24
25
26
-
KIT LORD 406 REPAIR KIT 50 ML [ADHESIVE]
2204171
2830614
$517,64 Unit Price incl. VAT
-
KIT LORD MIX NOZZLES 12 PIECE
2204172
$14,69 Unit Price incl. VAT
-
KIT LORD 406 50 ML CARTRIDGE [ADHESIVE]
2204400
$369,59 Unit Price incl. VAT
1
TUBE-CROSSOVER EXTRUDED
5140781
$173,24 Unit Price incl. VAT
2
ASM-BRKT IDLER TOP
1026546
$47,24 Unit Price incl. VAT
3
FLOOR BULKHEAD
5256849
$47,24 Unit Price incl. VAT
4
STUD
7519204
$36,74 Unit Price incl. VAT
4
ASM. CLIP W/STUD LH [INCL. STUDS][REQUIRES ADHESIVE]
1023153
1028706
$461,99 Unit Price incl. VAT
5
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
7
SCR-TXTH-M8X1.25X20 8.8 ZODP30
7519260
$11,54 Unit Price incl. VAT
8
ASM-NUT PLATE JACKSHFT TP/CO
1024312
$36,74 Unit Price incl. VAT
9
SCR-M5X0.8X12 10.9 TX/BH ZPC
7520967
$7,34 Unit Price incl. VAT
10
MOUNT-JACKSHAFT BEARING MACH
5144103
$47,24 Unit Price incl. VAT
11
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
12
ASM. BRACE LOWER LH [REQUIRES ADHESIVE][INCL. DOWEL PINS]
1023784
$209,99 Unit Price incl. VAT
13
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$7,34 Unit Price incl. VAT
14
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
15
MOUNT-STEERING LOWER MACH
5138449
$26,24 Unit Price incl. VAT
16
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
17
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$3,14 Unit Price incl. VAT
18
STUD
7519204
$36,74 Unit Price incl. VAT
18
ASM. CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]
1023783
$503,99 Unit Price incl. VAT
19
ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS. SEALS]
1333119
$390,59 Unit Price incl. VAT
20
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
21
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$4,19 Unit Price incl. VAT
22
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT
23
ASM. STUD PLATE M6x4
1020927
$52,49 Unit Price incl. VAT
24
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
24
ASM-COOLER BULKHEAD
1241329
$860,99 Unit Price incl. VAT
25
CLOSEOFF-TUNNEL FRONT MACH
5139282
$208,94 Unit Price incl. VAT
26
CLIP-DART (NYLON)
7670067
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
