1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY XCR 136
4
Parts Catalog

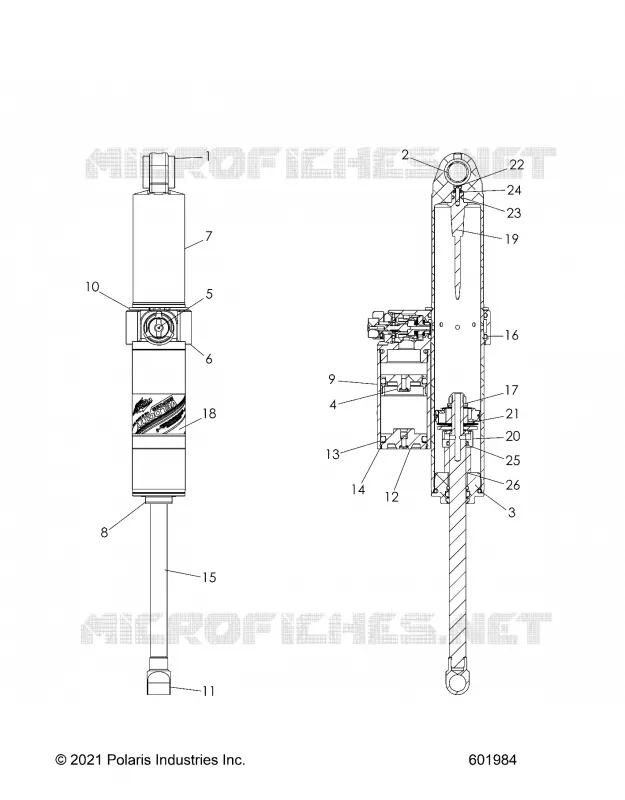

SUSPENSION, REAR SHOCK TRACK
5
Parts Diagram
Parts Catalog
SHOCK, IFS
by
SWAY BAR
SUSPENSION, REAR SHOCK TRACK
-
1
2
3
4
5
6
18
8
9
10
11
12
13
14
15
16
17
18
19
20
18
22
23
24
25
26
-
SHOCK-R/T W/E 2# VEL HI/LO
7045772
$981,74 Unit Price incl. VAT
1
BUSHING URETHANE
1800036
1801129
$34,64 Unit Price incl. VAT
2
SLEEVE
1800405
$62,99 Unit Price incl. VAT
3
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
4
ASM-PISTON IFP 1.750
1801186
$104,99 Unit Price incl. VAT
5
ADJUSTER-HS-LS W/KNOB [ADJUSTER ASM.]
1801059
$661,49 Unit Price incl. VAT
6
BRIDGE 1.75# ANO CLR
1801008
$493,49 Unit Price incl. VAT
7
WRENCH-8MMX10MM OPEN END
Not Available
8
ASM-SEAL HEAD 2.0
1801083
$251,99 Unit Price incl. VAT
9
BODY RESERVOIR
1800999
$188,99 Unit Price incl. VAT
10
RING-RETAINING 2.06OD
1801003
$36,74 Unit Price incl. VAT
11
LOOP SHAFT
1800096
$194,24 Unit Price incl. VAT
12
ASM-END CAP 2.0
1801006
$178,49 Unit Price incl. VAT
13
O-RING
1800184
$10,49 Unit Price incl. VAT
14
RETAINING RING WIRE 0.0625 X 1.750ID
1800795
$15,74 Unit Price incl. VAT
15
SHAFT-.625 DIA
1801212
$572,24 Unit Price incl. VAT
16
O-RING 2-226 1600018
1800863
$9,44 Unit Price incl. VAT
17
NUT-FLEX-TOP LOCK 7/16
1801000
$11,54 Unit Price incl. VAT
18
WRENCH-8MMX10MM OPEN END
Not Available
19
NEEDLE-1PC PRESS IN 1620008
1800861
$99,74 Unit Price incl. VAT
20
VALVE-CHECK
1801213
$209,99 Unit Price incl. VAT
21
WRENCH-8MMX10MM OPEN END
Not Available
22
#8-32 X .500 LOW HEAD SCREW
1800843
$9,44 Unit Price incl. VAT
23
O-RING 2-108 1600026
1800864
$9,44 Unit Price incl. VAT
24
0-RING 5MM ID X 2MM 1600073
1801031
$3,14 Unit Price incl. VAT
25
O-RING SHAFT SEAL HEAD
1800037
$3,14 Unit Price incl. VAT
26
SPACER-.965L
1801215
$99,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
