1
Engine displacement
500
2
Year
2012
3
Trim
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR
4
Parts Catalog

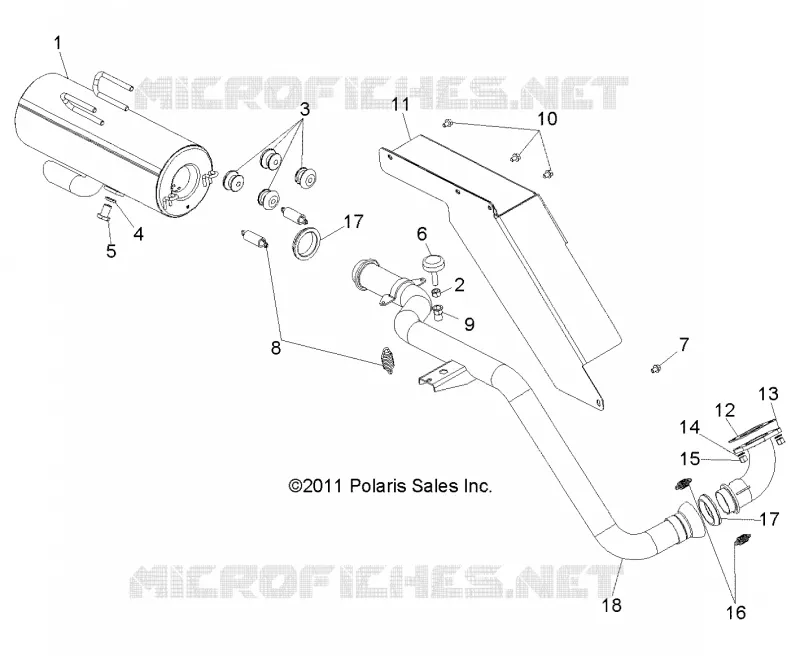

EXHAUST
5
Parts Diagram
Parts Catalog
CYLINDER
by
FLYWHEEL AND STATOR
EXHAUST
1
Silencer Black [Incl. 4 5]
1262003489
$734,99 Unit Price incl. VAT
2
NUT-5/16-18-FULL HT-Y
7542301
$3,14 Unit Price incl. VAT
3
Grommet Silencer Mount
5412727
Not Available
4
WASHER-CLEAN OUT .51X.75X.09
7556230
$2,09 Unit Price incl. VAT
5
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
6
Mount Torque Stop
3021522
$52,49 Unit Price incl. VAT
7
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
8
SPRING-EXHAUST
7041687
$12,59 Unit Price incl. VAT
9
Nut Center Lock
7547101
$17,84 Unit Price incl. VAT
10
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
11
Shield Heat Tank
5252672
$99,74 Unit Price incl. VAT
12
GASKET EXH.
3085075
$73,49 Unit Price incl. VAT
13
Manifold Black
1261688489
$293,99 Unit Price incl. VAT
14
WASHER Substituted by 3080530
3080051
$6,29 Unit Price incl. VAT
15
Nut
3087199
Not Available
16
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
17
Seal Exhaust
5243518
$52,49 Unit Price incl. VAT
18
Tube Exhaust Black
1261947489
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
