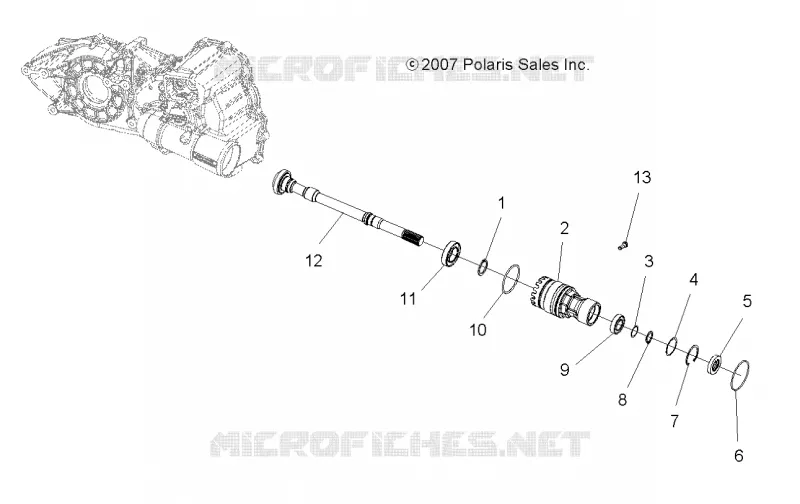

DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT FOR SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX FROM 2008

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT

-

Asm. Gearcase [Incl. All]

1332626

Not Available

1

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

2

Tube Snorkel

3234085

Not Available

3

SPACER

3233357

$36,74 Unit Price incl. VAT

4

Shim

3234243

Not Available

5

SEAL TRIPLE LIP

3233788

$57,74 Unit Price incl. VAT

6

SPRING COMPRESSION 3234078

3234076

$17,84 Unit Price incl. VAT

7

Ring Retaining

3234092

$19,94 Unit Price incl. VAT

8

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

9

Bearing Ball

3233305

$54,59 Unit Price incl. VAT

10

O-Ring

3234084

Not Available

11

BEARING BALL 6007 C3 35 X 62 X 14

3233265

$68,24 Unit Price incl. VAT

12

Shaft Snorkel

3234083

$467,24 Unit Price incl. VAT

13

SCREW TORX TRUSS HD 43834 X 0.75

3234086

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
