FRONT BUMPER AND MOUNTING FOR SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX FROM 2008

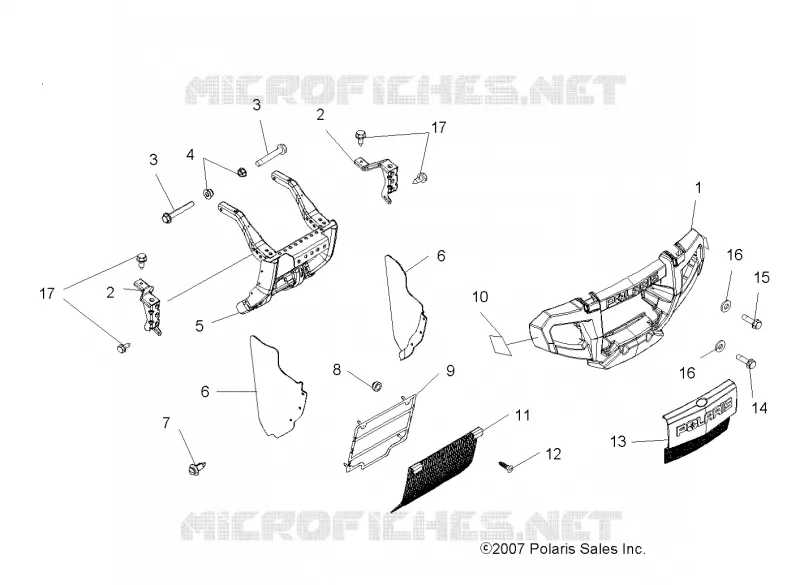

FRONT BUMPER AND MOUNTING

1

Asm. Bumper Front Black [Incl. Reflectors]

2633527070

$351,74 Unit Price incl. VAT

2

Support Rack Black RH

1014592067

Not Available

2

Support Rack Black LH

1014591067

$309,74 Unit Price incl. VAT

3

SCREW HXFL-5/16-18X0.75 GR5 ZY3

7518341

$9,44 Unit Price incl. VAT

4

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

5

Guard Brush Black

1015033067

$493,49 Unit Price incl. VAT

6

Shield Side Radiator LH

5434314

$68,24 Unit Price incl. VAT

6

Shield Side Radiator RH

5434315

Not Available

7

RIVET-TUFLOK .315-.325X.787 ?

7661855

$2,09 Unit Price incl. VAT

8

GROMMET-RUBBER MOUNT .25#

5412504

$7,34 Unit Price incl. VAT

9

Cover Radiator (If built after 11/01/02)

5435046

$99,74 Unit Price incl. VAT

10

Decal Reflector Amber RH

7174781

Not Available

10

Decal Reflector Amber LH

7174780

$23,09 Unit Price incl. VAT

11

Grill Brush Guard

5247507067

$99,74 Unit Price incl. VAT

12

Screw

7518046

$9,44 Unit Price incl. VAT

13

Panel Bumper Front Black

5435357070

$104,99 Unit Price incl. VAT

14

Screw

7518383

$7,34 Unit Price incl. VAT

15

Screw

7518382

$9,44 Unit Price incl. VAT

16

WASHER- .327X.875X.090 FL-M

7556341

$3,14 Unit Price incl. VAT

17

SCR-5/16-18X3/4 TFM HW T/R-Y

7515399

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
