1
Engine displacement
800
2
Year
2019
3
Trim
800 SWITCHBACK PRO-S SC SELECT
4
Parts Catalog

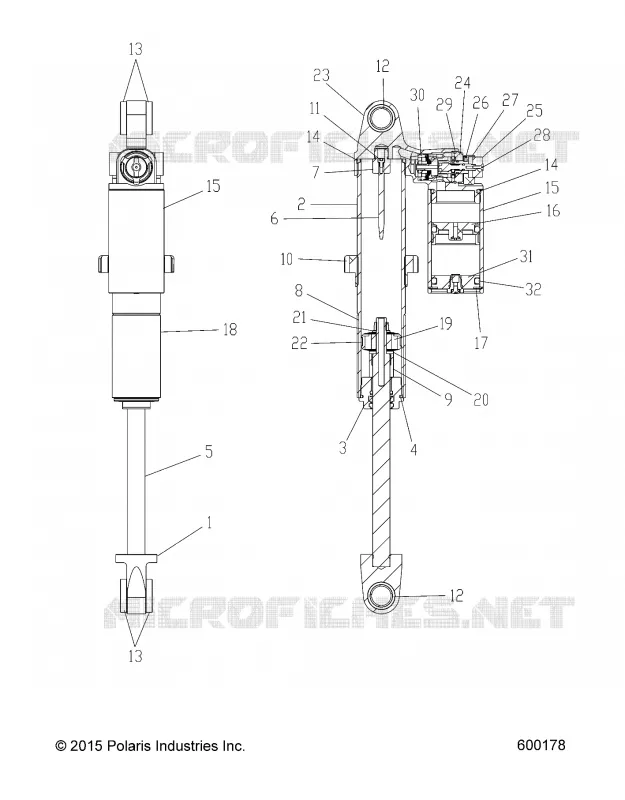

REAR TRACK SHOCK, HI LO ADJ., SNOW CHECK (7044383)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
by
ENGINE, AIR INTAKE SYSTEM
REAR TRACK SHOCK, HI LO ADJ., SNOW CHECK (7044383)
-
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
-
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
16
17
18
19
19
20
20
21
21
21
21
22
22
22
22
23
23
24
24
24
25
26
26
27
28
29
29
30
31
32
33
33
-
SHOCK RT
7044383
$1 217,99 Unit Price incl. VAT
1
LOOP SHAFT
1800471
$246,74 Unit Price incl. VAT
2
BODY RT BUTTRESS CLR
1800743
$178,49 Unit Price incl. VAT
3
ASM. SEAL HEAD
1800414
Not Available
4
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
5
SHAFT NEEDLE RT
1800428
$209,99 Unit Price incl. VAT
6
NEEDLE
1800300
$47,24 Unit Price incl. VAT
7
BOLT NEEDLE
1800302
$23,09 Unit Price incl. VAT
8
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
9
SPACER SHAFT
1800377
$47,24 Unit Price incl. VAT
10
NUT SPRING LOCK
1800372
$115,49 Unit Price incl. VAT
11
SCREW BLEED W/O-RING
1800074
$7,34 Unit Price incl. VAT
12
SLEEVE
1800405
$62,99 Unit Price incl. VAT
13
BUSHING
1800406
$9,44 Unit Price incl. VAT
14
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
15
BODY RES 2IN CLEAR
1800523
$194,24 Unit Price incl. VAT
16
PISTON IFP
1800739
$68,24 Unit Price incl. VAT
17
SNAP RING 1.75 ID
1800159
$10,49 Unit Price incl. VAT
18
SLEEVE WEAR
1800133
$40,94 Unit Price incl. VAT
19
PISTON CONVEX
1800001
$246,74 Unit Price incl. VAT
20
WASHER
1800204
$7,34 Unit Price incl. VAT
21
WASHER
1800050
$7,34 Unit Price incl. VAT
22
BAND WEAR
1800297
$62,99 Unit Price incl. VAT
23
PIGGYBACK 1 3/4 H/L
1800741
$451,49 Unit Price incl. VAT
24
ADJUSTER HS-LS
1800744
$262,49 Unit Price incl. VAT
25
KNOB-LS DOUBLE GRIP BLK
1800735
$83,99 Unit Price incl. VAT
26
SCREW-SET #3-48
1800736
$11,54 Unit Price incl. VAT
27
KNOB-HS TRI GRIP RED
1800737
$120,74 Unit Price incl. VAT
28
SCREW-4-40X.375 SS
1800738
$2,09 Unit Price incl. VAT
29
O-RING 2.0X24.5MM [ADJUSTER SEAL]
1800680
$9,44 Unit Price incl. VAT
30
O-RING 1.5X21.5MM
1800679
$8,39 Unit Price incl. VAT
31
ASM. END CAP
1800740
$152,24 Unit Price incl. VAT
32
O-RING
1800184
$10,49 Unit Price incl. VAT
33
SPRG-COMP.362X11.50 130# MBLK
7044625458
$141,74 Unit Price incl. VAT
33
SPRG-COMP.362X11.50 130# GOLD [FOUNDERS EDITION]
7044625703
$115,49 Unit Price incl. VAT
34
RETAINER-THRUST BEARING
5137541
$62,99 Unit Price incl. VAT
35
BRG-THRST 64.85ODX44.31IDX3.94
3514706
$20,99 Unit Price incl. VAT
36
RETAINER-SPRING SLOTTED
5137540
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
