1
Engine displacement
500
2
Year
2006
3
Trim
RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog

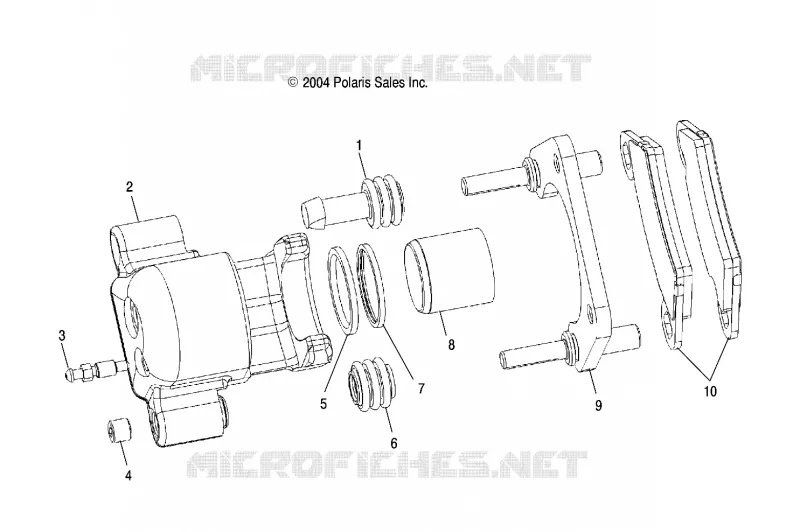

BRAKE REAR CALIPER
5
Parts Diagram
Parts Catalog
RECOIL STARTER
by
BRAKE LINES/MASTER CYLINDER
BRAKE REAR CALIPER
-
-
-
1
1
1
3
4
5
1
7
8
9
10
-
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
-
Asm. Caliper RH
1910826
Not Available
-
Asm. Caliper LH
1910825
Not Available
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
4
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
5
SEAL-CALIPER INNER 1.25#
5411596
$7,34 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SEAL CALIPER OUTER 1.25
5411597
$11,54 Unit Price incl. VAT
8
PISTON-CALIPER 1.25
5132405
$62,99 Unit Price incl. VAT
9
Asm. Caliper Mount
1910802
Not Available
10
KIT-BRAKE PAD ASM 1.5 [INCL. 4 PADS]
2202413
$98,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
