RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog

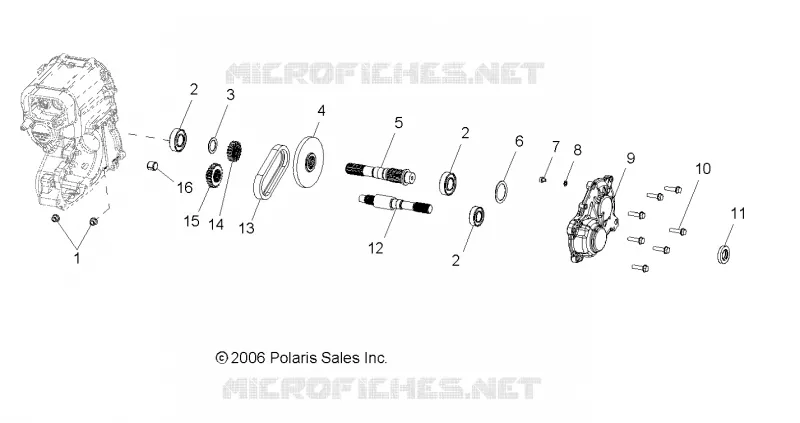

GEARCASE OUTPUT SHAFT
5
Parts Diagram
Parts Catalog
GEARCASE INTERNALS
by
CRANKSHAFT AND PISTON
GEARCASE OUTPUT SHAFT
-
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
-
Asm. Main Gearcase
1332351
$4 866,74 Unit Price incl. VAT
1
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
2
BEARING
3233019
$54,59 Unit Price incl. VAT
3
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
4
SUB-ASM. GROUND SPIRAL BEVEL [INCL. REF. 28 FROM DRIVE TRAIN MAIN GEARCASE INTERNAL PAGE]
3234911
$734,99 Unit Price incl. VAT
5
SHAFT OUTPUT MAIN REAR
3233911
$325,49 Unit Price incl. VAT
6
SHIM
3233611
$52,49 Unit Price incl. VAT
7
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
8
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
9
Cover Output Front [4x4][6x6]
3234132
Not Available
10
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
11
Seal
3233842
3234892
$68,24 Unit Price incl. VAT
12
SHAFT OUTPUT MAIN FRONT
3233625
$262,49 Unit Price incl. VAT
13
CHAIN SILENT
3233408
$188,99 Unit Price incl. VAT
14
SPROCKET 19T
3233843
$257,24 Unit Price incl. VAT
15
SPROCKET 22T
3233844
$220,49 Unit Price incl. VAT
16
BEARING
3233552
$41,99 Unit Price incl. VAT
