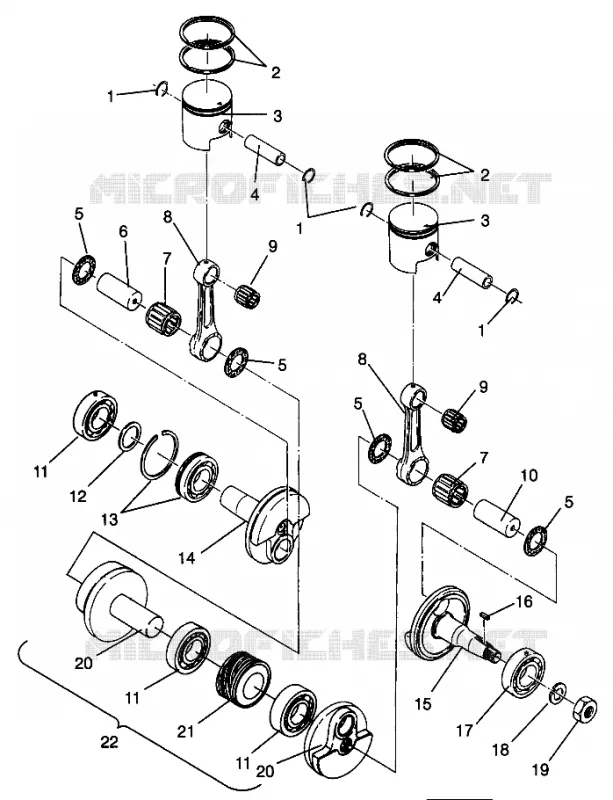

PISTON CRANKSHAFT 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEA (4931983198C011) FOR EURO 500 EFI SKS - E962574 FROM 1996

PISTON CRANKSHAFT 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEA (4931983198C011)

1

CLIP PISTON PIN (10)

3083839

$7,34 Unit Price incl. VAT

2

RING PISTON (.020 O/S) (.020 Oversize)

3084344

Not Available

2

RING PISTON STD. (Standard)

3084342

$68,24 Unit Price incl. VAT

2

RING PISTON (.010 O/S) (.010 Oversize)

3084343

Not Available

3

PISTON (.020 O/S) (.020 Oversize) (Incl

3084341

Not Available

3

PISTON STD. (Standard) (Incl.16)

3084339

Not Available

3

PISTON (.010 O/S) (.010 Oversize) (Incl

3084340

Not Available

4

PIN PISTON

3083858

$40,94 Unit Price incl. VAT

5

SPACER CRANK PIN

3083277

$27,29 Unit Price incl. VAT

6

CRANK PIN 2

3083456

$57,74 Unit Price incl. VAT

7

BEARING-LARGE END Substituted by 3085628

3083255

$54,59 Unit Price incl. VAT

8

ROD-CONNECTING

3083252

$236,24 Unit Price incl. VAT

9

BEARING END SMALL

3083216

$25,71 Unit Price incl. VAT

10

PIN CRANK

3083233

Not Available

11

BEARING BALL

3084586

$60,89 Unit Price incl. VAT

12

DESC NOT_AVAILABLE

3085237

Not Available

13

BALL BEARING

3085204

Not Available

14

CRANKSHAFT 3 (PTO Side)

3085202

Not Available

15

CRANKSHAFT #1

3083362

Not Available

16

KEY

3081447

Not Available

17

BALL BEARING

3085205

Not Available

18

WASHER SPRING

3083094

$6,29 Unit Price incl. VAT

19

NUT

3083093

$7,34 Unit Price incl. VAT

20

CRANKSHAFT 2 (Incl. 6)

3083713

$806,39 Unit Price incl. VAT

21

GEAR DRIVE OIL PUMP

3083782

$150,14 Unit Price incl. VAT

22

CRANKSHAFT ASM (Incl. 5 8 7-15 20)

3085206

$1 665,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
