1
Engine displacement
500
2
Year
1996
3
Trim
EURO 500 EFI SKS - E962574
4
Parts Catalog
CYLINDER 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI SKS (4931983198C009)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 E (4931983198C004)
by
WATER PUMP 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI S (4931983198C010)

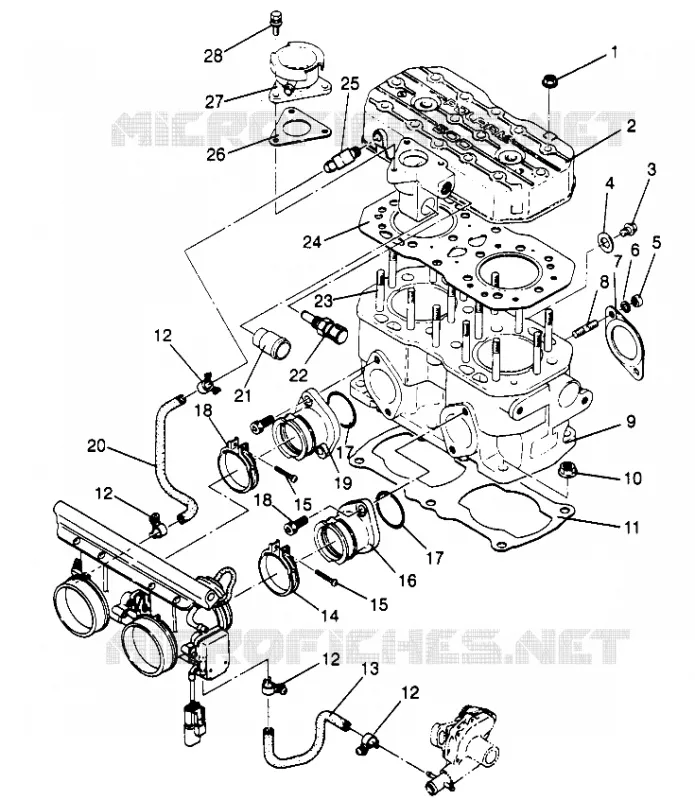

CYLINDER 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI SKS (4931983198C009)
1
NUT-FLANGE(10)
3082910
Not Available
2
HEAD CYL. CPL. (Incl. 8)
3084331
$423,14 Unit Price incl. VAT
3
PLUG
3084491
Not Available
4
GASKET ALUMINUM
3084492
$7,34 Unit Price incl. VAT
5
NUT(10)
3080285
Not Available
6
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
7
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
8
STUD (10)
3080016
$9,23 Unit Price incl. VAT
9
CYLINDER CPL. (Incl. 2 3)
3084330
$807,44 Unit Price incl. VAT
10
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
11
GASKET BASE
3084768
$94,49 Unit Price incl. VAT
12
CLAMP
3084051
Not Available
13
HOSE 2 WATER
3084338
Not Available
14
BAND ASM. (Incl. Bolt)
3084045
$47,24 Unit Price incl. VAT
15
SCREW
3081497
$4,19 Unit Price incl. VAT
16
ADAPTER CPL. RH
3084335
Not Available
17
O-RING
3084229
Not Available
18
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
19
ADAPTER CPL LH
3084334
Not Available
20
HOSE 1 WATER
3084337
Not Available
21
PIPE WATER (Water)
3083452
Not Available
22
SENSOR WATER TEMP. Substituted by 3086138
3084333
Not Available
23
STUD
3083360
Not Available
24
GASKET HEAD
3084332
Not Available
25
PIPE HEAD (Head)
3084390
Not Available
26
GASKET FILLER NECK
3083340
Not Available
27
NECK FILLER
3083398
Not Available
28
BOLT&WASHER ASM.
3083361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
