1
Engine displacement
0
2
Year
1994
3
Trim
STARLITE - 0943427
4
Parts Catalog
BLOWER HOUSING RECOIL ASSEMBLY LITE 0943433,STARLITE 0943427 AND LITE DE (4924992499045A)
5
Parts Diagram
Parts Catalog
FUEL PUMP STARLITE 0943427 (4924992499044A)
by

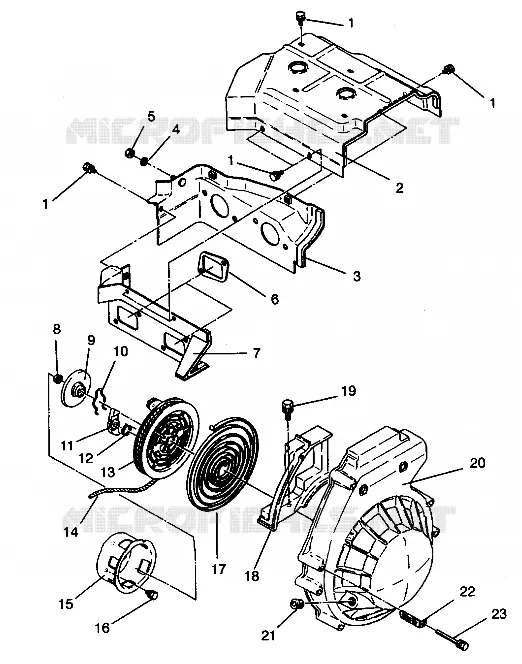

BLOWER HOUSING RECOIL ASSEMBLY LITE 0943433,STARLITE 0943427 AND LITE DE (4924992499045A)
1
BOLT&WASHER ASM(10)
3083715
Not Available
2
BAFFLE#1 CYL.
3084420
Not Available
3
BAFFLE#2 CYL.
3084421
$106,56 Unit Price incl. VAT
4
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
5
NUT(10)
3084375
Not Available
6
GASKET INTAKE Substituted by 3085846
3084024
Not Available
7
BAFFLE CYL.#3 Substituted by 3085847
3084423
$119,16 Unit Price incl. VAT
8
NUT FLANGE
3083381
Not Available
9
PLATE FRICTION
3083464
Not Available
10
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
11
RATCHET
3083378
$36,74 Unit Price incl. VAT
12
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
13
ASM. REEL
3083377
$104,99 Unit Price incl. VAT
14
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
15
PULLEY-STARTING
3083108
Not Available
16
BOLT (10)
3081665
$6,29 Unit Price incl. VAT
17
SPRING SPIRAL
3083376
3023393
$278,24 Unit Price incl. VAT
18
HOUSING BLOWER#2
3083591
$27,92 Unit Price incl. VAT
19
BOLT & WASHER
3081663
$2,09 Unit Price incl. VAT
20
CASE STARTER
3083589
$238,34 Unit Price incl. VAT
20
RECOIL STARTER (Incl. 1-10)
3083588
Not Available
21
BUSHING ROPE SLIDE
3083107
3040171
$6,08 Unit Price incl. VAT
22
CLAMP
3083590
$7,34 Unit Price incl. VAT
23
BOLT&WASHER
3083729
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
