1
Engine displacement
0
2
Year
1994
3
Trim
STARLITE - 0943427
4
Parts Catalog
DECALS STARLITE 0943427 (4924992499008A)
5
Parts Diagram
Parts Catalog
DECALS LITE 0943433 (4924992499007A)
by
DECALS LITE DELUXE 0943431 (4924992499009A)

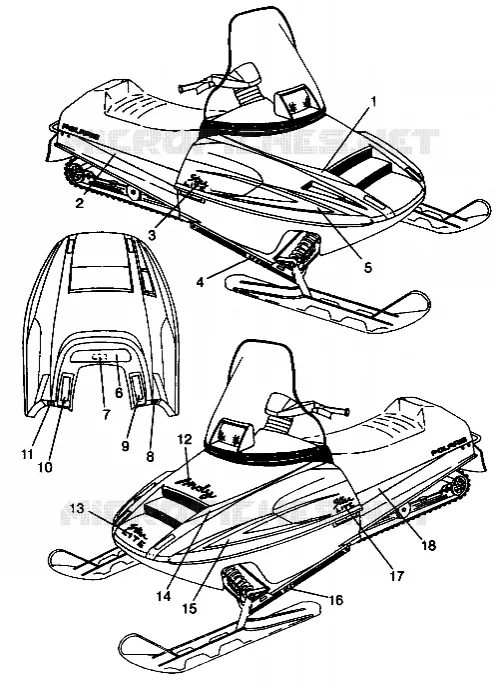

DECALS STARLITE 0943427 (4924992499008A)
1
DECAL RH HD.TOP(94 S#LITE)
7073918
Not Available
2
DECAL RH TUNNEL(94 S#LITE)
7073924
Not Available
3
DECAL RH RR.HD.SIDE(94 S#LITE)
7073922
Not Available
4
DECAL RH IFS (94 S#LITE) [No Longer Available]
7074305
Not Available
5
DECAL RH F.HD.SIDE(94 S#LITE)
7073920
Not Available
6
DECAL WARN.(ENG.) [No Longer Available]
7072924
Not Available
7
DECAL SPEC(93STARLITE) [No Longer Available]
7073548
Not Available
8
DECAL#NO PASS#GR#WARN.
7073406
Not Available
9
DECAL COVER WARN.(FR.) [No Longer Available]
7072927
Not Available
10
DECAL COVER WARN.(ENG.) [No Longer Available]
7072925
Not Available
11
LABEL #U.S.A.#
7073024
Not Available
12
DECAL CTR.HD INDY(94)
7073916
Not Available
13
DECAL CTR.HD(94 S#LITE)
7073915
Not Available
14
DECAL LH HD.TOP(94 S#LITE) [No Longer Available]
7073917
Not Available
15
DECAL LH F.HD.SIDE(94 S#LITE)
7073919
Not Available
16
DECAL LH IFS (94 S#LITE)
7074304
Not Available
17
DECAL LH RR.HD.SIDE(94 S#LITE) [No Longer Available]
7073921
Not Available
18
DECAL LH TUNNEL(94 S#LITE)
7073923
Not Available
18
KIT DECAL(94STARLITE) [No Longer Available] (Incl. 1 3 5-15 17)
2200495
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
