Parts Catalog
HOOD 650 AND 650 SKS (4919261926003A)
5
Parts Diagram
Parts Catalog
CHASSIS AND SEAT 650 AND 650 SKS (4919261926001A)
by
DRIVEN CLUTCH ASM. 650 AND 650 SKS (4919261926011A)

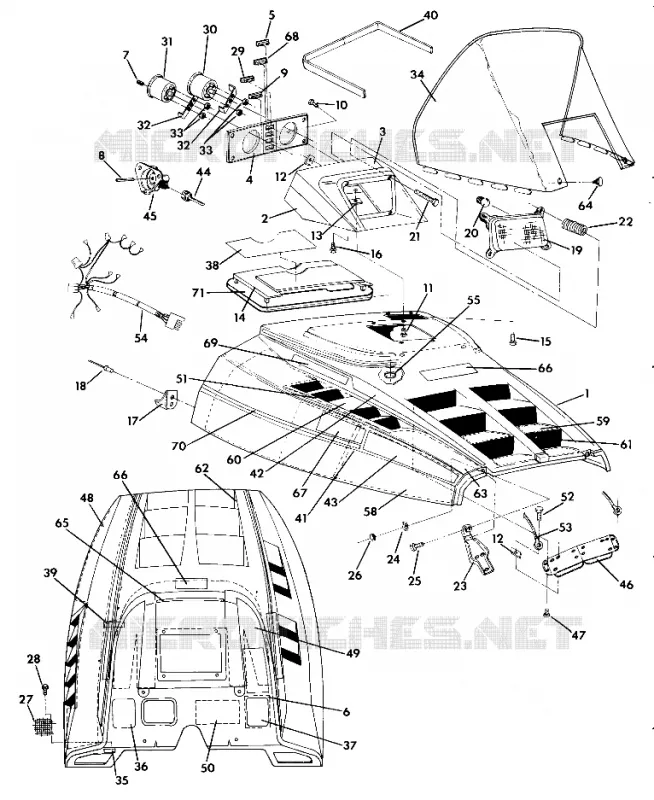

HOOD 650 AND 650 SKS (4919261926003A)
1
HOOD BLACK INDY Substituted by 2631574-070
5431194070
Not Available
2
HSG INST.BOTT.BLK.
5430922070
Not Available
3
HSG INST TOP BLK
5430923070
Not Available
4
BEZEL INST.
5430924
Not Available
5
INDICATOR#TEMP#WARN.
4040011
$62,99 Unit Price incl. VAT
6
DECAL SPEC (#88-#91) [No Longer Available]
7072503
Not Available
7
KNOB TRIP ODOMETER
3280103
$6,18 Unit Price incl. VAT
8
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
9
PLUG INDIC.HOLE (400 & 650)
5430967
$12,59 Unit Price incl. VAT
10
SCREW SCKT.HD.CAP(10)
7512008
Not Available
11
SCREW
7512283
$7,34 Unit Price incl. VAT
12
NUT SPEED(10)
7670056
Not Available
13
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
14
PANEL INTAKE BLK Substituted by 2620078-070
5431195070
Not Available
15
SCREW(10)
7511840
Not Available
16
SCREW(10)
7512009
Not Available
17
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
18
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
19
HEADLIGHT ASM.
4032040
Not Available
20
BULB H/L
4030028
Not Available
20
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
21
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
22
SPRING-ADJ
4032002
Not Available
23
HINGE ASM HD. Substituted by 2635005-067
2635005
Not Available
24
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
25
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
26
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
27
SCREEN HOOD Substituted by 5211117-067
5211117
Not Available
28
SCREW(10)
7511861
Not Available
29
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
30
SPEEDOMETER (Incl. 32-33)
3280092
$179,54 Unit Price incl. VAT
31
TACHOMETER 3 CYL. Substituted by 3280192 (Incl. 32-33) (650)
3280096
Not Available
32
BRACKET (SPORT)
3280098
Not Available
33
NUT
3280063
Not Available
34
WINDSHIELD(W/RED STRIPE) Substituted by 5431144 (400 & 650)
5430964
$182,69 Unit Price incl. VAT
35
LABEL #U.S.A.#
7073024
Not Available
36
DECAL OPER.CAUT.ENG. [No Longer Available] (650)
7072492
Not Available
37
DECAL OPER.CAUT.(FR.) [No Longer Available] (650)
7072493
Not Available
38
DECAL DASH WARNING [No Longer Available] (650)
7072491
Not Available
39
CLIP WIRING (10) Substituted by 7080665
4020035
Not Available
40
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
40
PAD W/S LH BLACK
5810437
Not Available
41
TAPE FOIL FOAM
5810405
Not Available
42
DECAL RH HD.TOP(91-650) [No Longer Available]
7072988
Not Available
42
DECAL LH HD.TOP(91-650) [No Longer Available]
7072987
Not Available
43
DECAL RH HD.TOP(91-650) [No Longer Available]
7072988
Not Available
43
DECAL LH HD.TOP(91-650) [No Longer Available]
7072987
Not Available
44
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
45
ADAPTER DRIVE Substituted by 3280116
3280095
3280540
$188,99 Unit Price incl. VAT
46
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
48
FOAM HOOD RH
5810375
Not Available
48
FOAM HOOD LH
5810374
Not Available
49
FOAM HOOD CTR
5810376
Not Available
50
FOAM HOOD
5810389
Not Available
51
TAPE FOIL
5810395
Not Available
52
BOLT
7511989
Not Available
53
CABLE HOOD RETAINER (650)
7080368
$19,94 Unit Price incl. VAT
54
HARNESS HEADLIGHT Substituted by 2460349
2460315
Not Available
55
O RING (HEAVY) (10) Substituted by 5410970
5410387
5410970
$2,09 Unit Price incl. VAT
58
TAPE FOIL FOAM
5810407
Not Available
59
TAPE FOIL RH
5810394
Not Available
59
TAPE FOIL LH
5810393
Not Available
60
TAPE FOIL
5810396
Not Available
61
TAPE FOIL
5810397
Not Available
62
TAPE FOIL LOUVER PIPE SIDE
5810404
Not Available
63
TAPE FOIL FOAM
5810406
Not Available
64
RIVET (PLASTIC LOK)(50) Substituted by 7621509
7621505
7621509
$2,09 Unit Price incl. VAT
66
LOGO #650# [No Longer Available]
5431240
Not Available
67
DECAL #650# (91) [No Longer Available]
7072999
Not Available
68
INDICATOR#LOW-OIL#WARN. (Classic)
4040012
Not Available
69
DECAL L/C.TRIPE(#91-650) [No Longer Available]
7072944
Not Available
70
DECAL LH HD.TL.(91-650) [No Longer Available]
7072995
Not Available
70
DECAL RH HD.TL.(91-650) [No Longer Available]
7072996
Not Available
71
DECAL RH HOOD(91-650) [No Longer Available]
7072994
Not Available
71
SEAL INTAKE Substituted by 5810597
5810503
Not Available
71
HOLDER-CAP
4032004
Not Available
71
DECAL LH N#CONE(91-650) [No Longer Available]
7072993
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
