1
Engine displacement
650
2
Year
2023
3
Trim
650 RMK KHAOS 146 SLASH
4
Parts Catalog

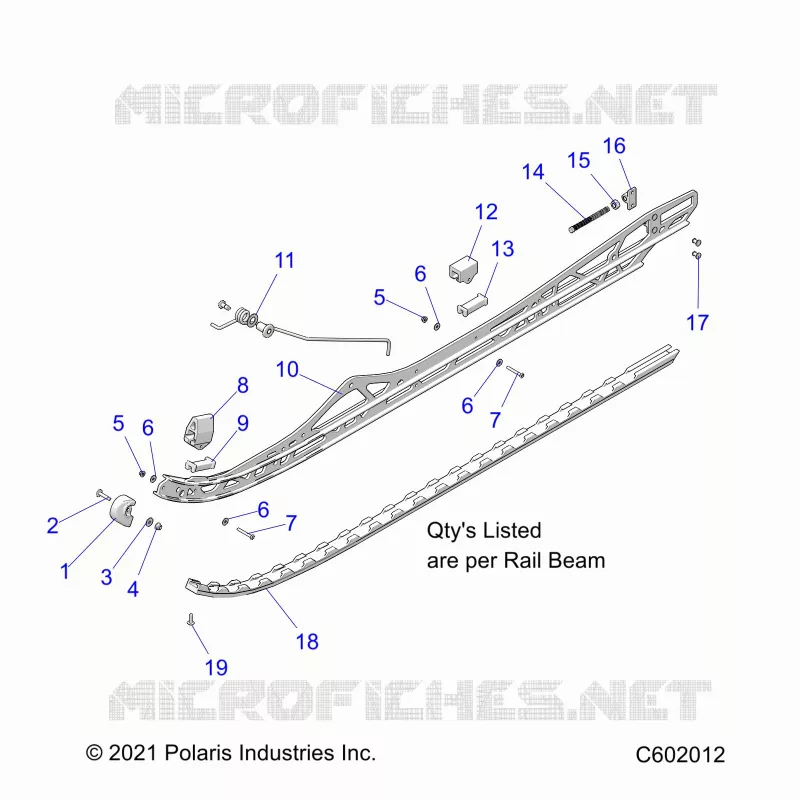

SUSPENSION, RAIL BEAMS, LH/RH
5
Parts Diagram
Parts Catalog
SUSPENSION, IFS SHOCKS MNTG.
by
SUSPENSION, REAR TORQUE ARM
SUSPENSION, RAIL BEAMS, LH/RH
1
2
3
4
5
5
6
6
6
6
7
7
8
9
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
CAP RAIL TIP
5452441
$26,24 Unit Price incl. VAT
2
SCR-TXTH-M6X1.0X30 8.8 ZPB
7520133
$6,29 Unit Price incl. VAT
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
4
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
5
NUT-M5X0.8 8.8 HX/FL NYLOC
7547427
$6,29 Unit Price incl. VAT
6
WASHER-M5.3X15X1.2 ZOD
7556470
$4,19 Unit Price incl. VAT
7
SCR-M5X0.8X40 8.8 TR/TX ZOD
7518951
$6,29 Unit Price incl. VAT
8
BUMPER HOLLOW TALL
5415327
$27,29 Unit Price incl. VAT
9
LINER BUMPER LOW PROFILE
5451787
$12,59 Unit Price incl. VAT
10
ASM-RAIL BSC COIL-OVER 146 RH [BLACK OPTION][INCL. 16 17]
1544539067
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 RH RED [RED OPTION][INCL. 16 17]
1544539293
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 RH RGM [RADIANT GREEN OPTION][INCL. 16 17]
1544539887
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 LH LLM [LIFTED LIME OPTION][INCL. 16 17]
1544538801
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 RH LLM [LIFTED LIME OPTION][INCL. 16 17]
1544539801
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 LH NAT [NATURAL OPTION][INCL. 16 17]
1544538309
$818,99 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 RH NAT [NATURAL OPTION][INCL. 16 17]
1544539309
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC COIL-OVER 146 LH [BLACK OPTION][INCL. 16 17]
1544538067
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 LH RED [RED OPTION][INCL. 16 17]
1544538293
$1 018,49 Unit Price incl. VAT
10
ASM-RAIL BSC C-OVER 146 LH RGM [RADIANT GREEN OPTION][INCL. 16 17]
1544538887
$1 018,49 Unit Price incl. VAT
11
K-SCRATCHER HOLTZ AXYS [PAIR]
2882028
$146,99 Unit Price incl. VAT
12
BUMPER JOUNCE REAR COIL-OVER
5522056
$26,24 Unit Price incl. VAT
13
Liner Bumper
5432946
$19,94 Unit Price incl. VAT
14
SCR-HX-M10X1.5X100 8.8 ZOD
7520083
$23,09 Unit Price incl. VAT
15
NUT-HEX-M10X1.5 8 ZOD
7547707
$7,34 Unit Price incl. VAT
16
BLOCK IDLER BOLT ADJUSTABLE METRIC
5139435
$26,24 Unit Price incl. VAT
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
HIFAX-146 LWT BLK [1 PER RAIL]
5522388070
$83,99 Unit Price incl. VAT
19
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
