1
Engine displacement
650
2
Year
2023
3
Trim
650 RMK KHAOS 146 SLASH
4
Parts Catalog

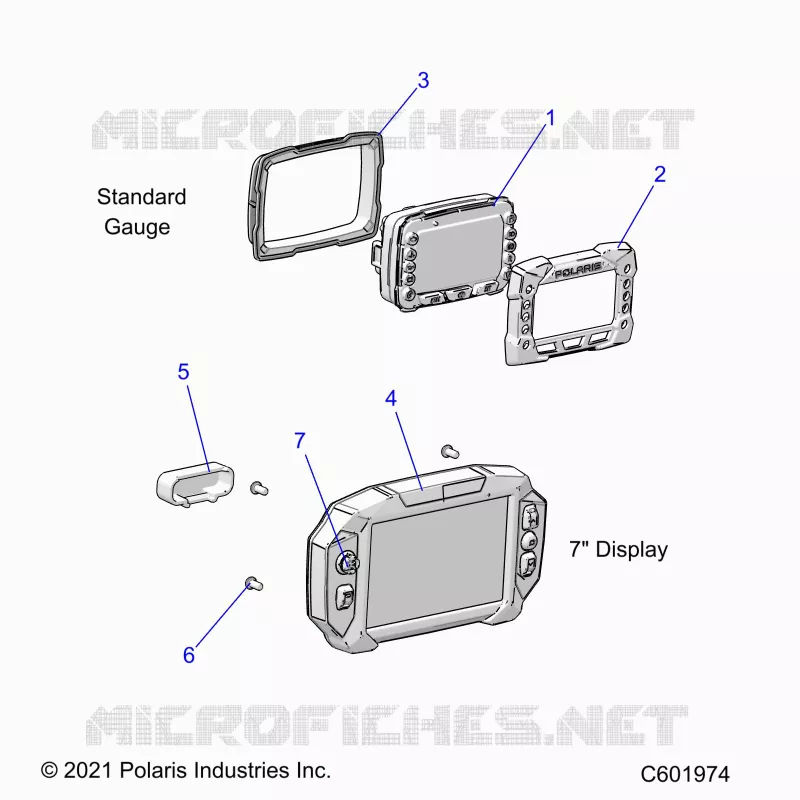

ELECTRICAL, MULTI FUNCTION GAUGE
5
Parts Diagram
Parts Catalog
ELECTRICAL, HEADLIGHT AND TAILLIGHT
by
ENGINE, AIR INTAKE SYSTEM
ELECTRICAL, MULTI FUNCTION GAUGE
1
2
3
4
4
5
6
7
1
ASM-GAUGE B1 SNO STANDARD GAUGE OPTION
3286895
$782,24 Unit Price incl. VAT
2
BEZEL-GAUGE CPI B1
5457170
$47,24 Unit Price incl. VAT
3
GASKET DIGITAL GAUGE
5415589
$20,99 Unit Price incl. VAT
4
DISPLAY-DIG 7W PRG INTL [INCL. 2-4][INTL ONLY]
3286888
3286999
$1 858,49 Unit Price incl. VAT
4
DISPLAY-DIG 7W PRG (7# DISPLAY OPTION)
3286891
3286998
$1 858,49 Unit Price incl. VAT
5
CAP-7# DISPLAY
5417583
$8,39 Unit Price incl. VAT
6
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
7
K-TOGGLE BUTTON W/SLEEVE
2209599
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
