1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 4X4 - A01CD32AA
4
Parts Catalog

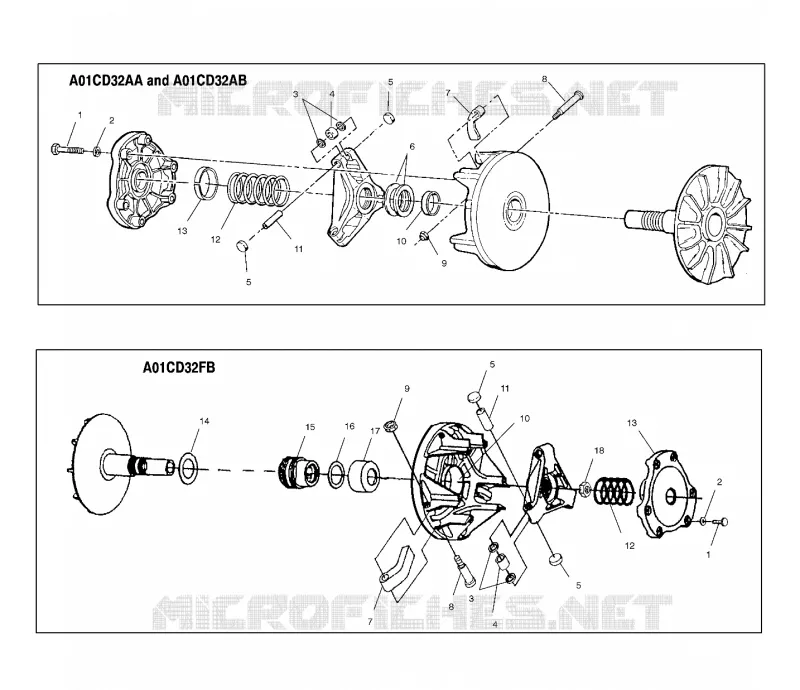

DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
WISHBONES
by
DRIVEN CLUTCH
DRIVE CLUTCH
-
Asm. Drive Clutch Braking [Incl. All Less 15 19]
1321706
$1 081,49 Unit Price incl. VAT
-
CLUTCH DRIVE(ATV-06) (Incl. All Less 4 9)
1321632
1321976
$1 081,49 Unit Price incl. VAT
1
BOLT(10) Substituted by 7512163
7512176
7512163
$7,34 Unit Price incl. VAT
2
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
3
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
4
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
5
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
6
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
6
SPACER-1.350X1.750X.025-Y
5242981
$7,34 Unit Price incl. VAT
6
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
6
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
7
WT. CLUTCH 16(6)
5630279
$62,99 Unit Price incl. VAT
7
Weight Shift 10 MH
5630513
5632281
$62,99 Unit Price incl. VAT
8
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
9
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
10
Bearing
3585712
$54,59 Unit Price incl. VAT
10
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
11
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
12
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
13
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
14
WASHER Substituted by 7556204
7556008
$20,99 Unit Price incl. VAT
15
Clutch One Way Drive
1520231
$467,24 Unit Price incl. VAT
16
WASHER Substituted by 7556202
7556009
$12,59 Unit Price incl. VAT
17
Spacer
5631119
Not Available
18
Nut Jam
7547130
$41,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
