1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 4X4 - A01CD32AA
4
Parts Catalog

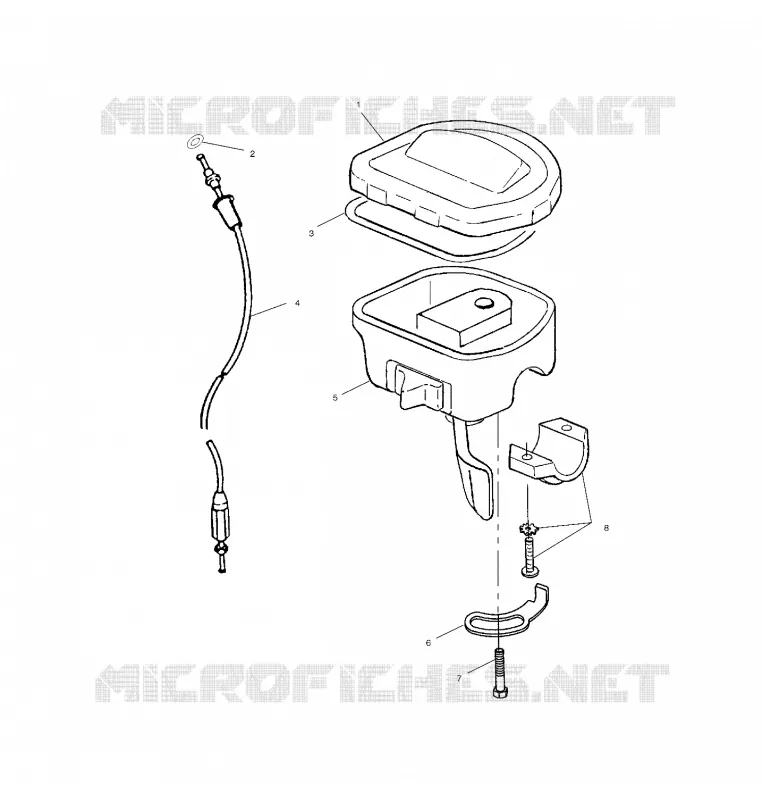

CONTROLS
5
Parts Diagram
Parts Catalog
FRONT BRAKE
by
CONTROLS
CONTROLS
1
Cover
5434113
$68,24 Unit Price incl. VAT
2
O-RING
5410193
$7,34 Unit Price incl. VAT
3
O-RING (10)
5411439
$4,19 Unit Price incl. VAT
4
CABLE-THROTTLE SNAP-IN 4-CYCLE
7080709
$104,99 Unit Price incl. VAT
4
CABLE-THROTTLE 1/4 TURN 991 MM (If built after 1/01/01
7080969
Not Available
5
Asm. Throttle Control [Incl. 6]
2010205
$351,74 Unit Price incl. VAT
5
THROTTLE CONTROL HOBBS 2X4 (Incl. 6) (If built before 1/01/01)
2010203
Not Available
6
Bracket Throttle Stop
5245134
$19,94 Unit Price incl. VAT
7
Screw
7517910
$10,49 Unit Price incl. VAT
8
Asm. Throttle Clamp [INCL. CLAMP WASHERS SCREWS]
2010191
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
