Engine displacement
500
2
Year
2012
3
Trim
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR
4
Parts Catalog
SEAT
5

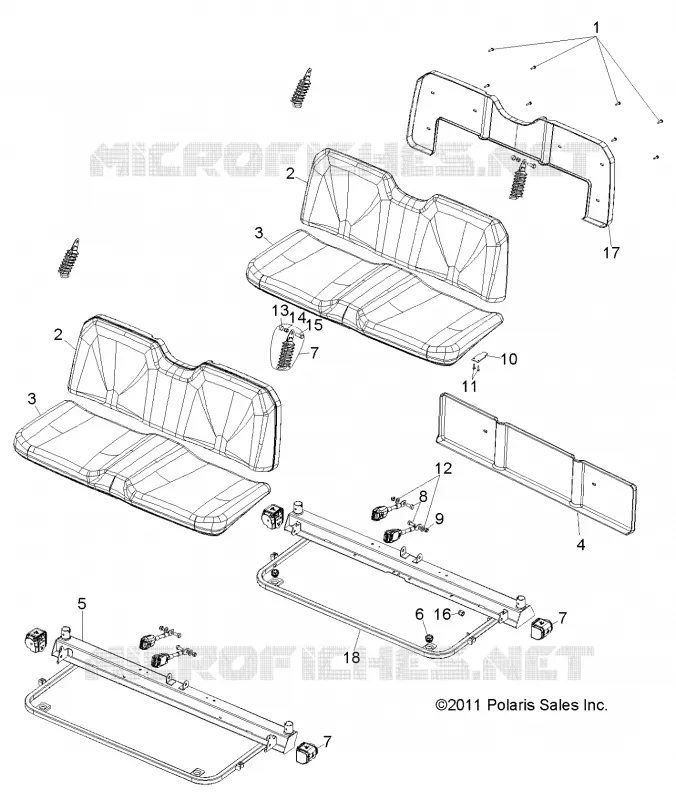

Parts Diagram
Parts Catalog
HOOD, DASH AND GRILL
by
SIDE NETS
SEAT
1
2
2
2
2
3
3
3
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
13
17
18
1
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
2
ASM-SEAT RNGR BACK BLK
2684887070
$965,99 Unit Price incl. VAT
2
Asm. Seat Back Black/Silver [AK]
2685127
$435,74 Unit Price incl. VAT
3
Asm. Seat Bottom Black/Silver [Incl. 10 11][AK]
2685128
$965,99 Unit Price incl. VAT
3
ASM. SEAT BOTTOM BLACK [INCL. 4 10 11]
2684886070
$1 065,74 Unit Price incl. VAT
4
COVER SEAT MIDDLE LOWER
5438766
$125,99 Unit Price incl. VAT
5
Base Cab/Seat Matte# Black
1017631458
Not Available
6
GROMMET
5412507
$12,59 Unit Price incl. VAT
7
Asm. Seat Belt 3 Point
2634154
$314,99 Unit Price incl. VAT
8
Bolt
7518820
$7,34 Unit Price incl. VAT
9
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
10
TAB-MOUNT SEAT
5437903
$9,44 Unit Price incl. VAT
11
RVT-3/16(.187-.375)AL-AL/BULBX
7621479
$3,66 Unit Price incl. VAT
12
WASHER-FLAT .531X1.063X.095-Y
7556333
$7,34 Unit Price incl. VAT
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
15
SCR-7/16-20X1 HX CP GR5-Y
7512520
$9,44 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
Cover Seat Back Black
5437909070
$141,74 Unit Price incl. VAT
18
Base Cab/Seat Matte# Black
1017817458
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
