1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog
FRONT BRAKE
5
Parts Diagram
Parts Catalog
STARTING MOTOR
by
CONTROL PANEL

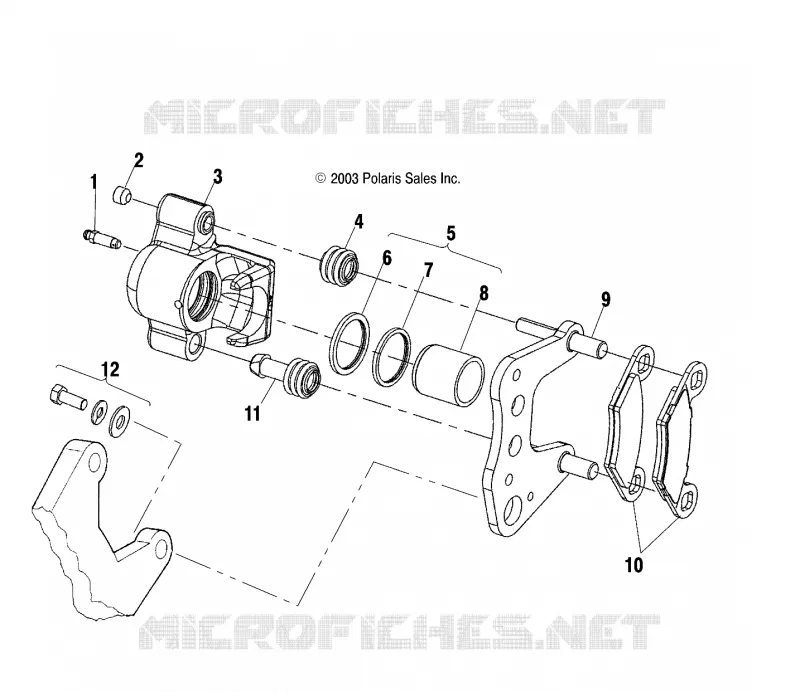

FRONT BRAKE
-
-
1
2
3
3
3
4
5
6
7
8
9
10
10
11
12
12
12
1
2
3
4
5
6
7
8
9
10
11
12
-
-
-
-
1
1
2
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
12
12
12
-
Asm. Front Brake Caliper LH [Incl. 1-7 9 10]
1910695
Not Available
-
Asm. Brake Caliper RH [Incl. 1-3 6-9 11]
1910663
Not Available
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
3
Caliper Brake RH [If built after 5/02/02]
5133408
Not Available
3
Caliper Brake LH [If built after 5/02/02]
5133407
Not Available
4
BOOT PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
5
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
6
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
7
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
8
PISTON-BRAKE LONG Substituted by 1930665
5132294
1930665
$104,99 Unit Price incl. VAT
9
MOUNT ASM CALIPER
1910412
Not Available
10
KIT-BRAKE PAD ASM FRONT [INCL. 2 PADS]
2202412
$98,16 Unit Price incl. VAT
10
Pad Brake Front
1910333
2202412
$98,16 Unit Price incl. VAT
11
BOOT BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
12
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
12
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
12
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
