1
Engine displacement
650
2
Year
2022
3
Trim
650 SWITCHBACK XC 146
4
Parts Catalog

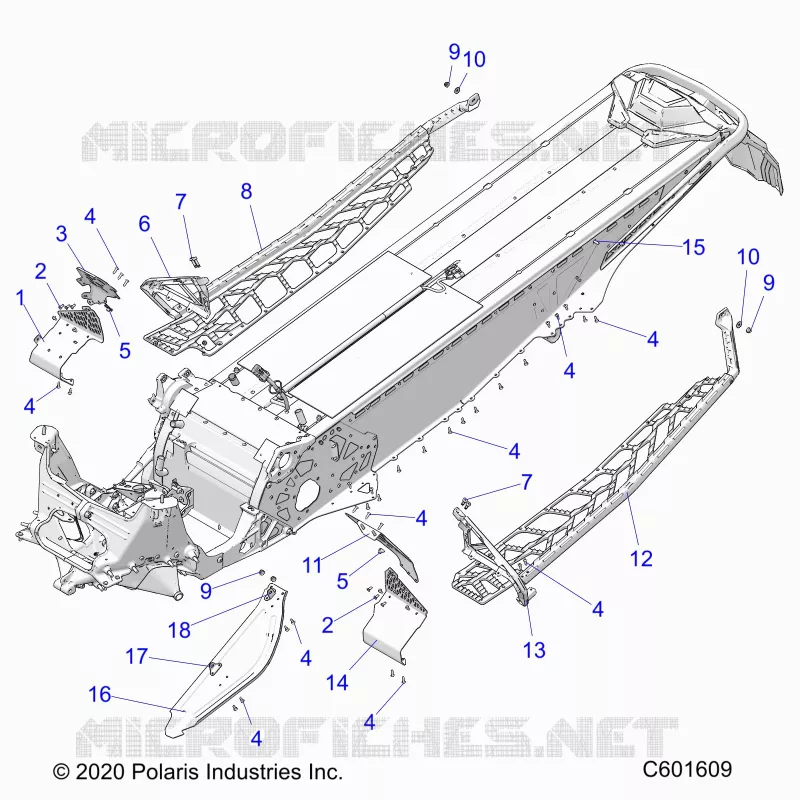

CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
5
Parts Diagram
Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
by
CHASSIS, TIE ROD BOOT ASM.
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
1
2
2
3
4
4
4
4
4
4
4
4
4
4
5
5
6
6
6
6
7
7
8
8
8
8
9
9
9
10
10
11
12
12
12
12
13
13
13
13
14
15
16
17
18
1
CLOSEOFF-FOOTREST RH
5269375
5272699
$157,49 Unit Price incl. VAT
2
RIVET-4.8MM DIA-1.5-6.0 GRIP
7661973
$2,09 Unit Price incl. VAT
3
ASM-CONSOLE SUPPORT [INCL. 5]
1027022
1028623
$62,99 Unit Price incl. VAT
4
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
5
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
6
SUPPORT-FOOTREST RH MACH BLK
5143267067
$125,99 Unit Price incl. VAT
6
SUPPORT-FOOTREST RH MACH STGRY [COLOR OPTION]
5143267804
$125,99 Unit Price incl. VAT
6
SUPPORT-FOOTREST RH MACH [COLOR OPTION]
5143267
$83,99 Unit Price incl. VAT
6
SUPPORT-FOOTREST RH MACH RED [COLOR OPTION]
5143267293
$125,99 Unit Price incl. VAT
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$4,19 Unit Price incl. VAT
8
ASM-RUNNINGBOARD 146 RH BLK [COLOR OPTION][BLACK]
1025466067
$545,99 Unit Price incl. VAT
8
ASM-RUNNINGBOARD 146 RH [COLOR OPTION][NATURAL]
1025466
$561,74 Unit Price incl. VAT
8
ASM-RUNNINGBOARD 146 RH STGRAY [COLOR OPTION][STEALTH GRAY]
1025466804
$561,74 Unit Price incl. VAT
8
ASM-RUNNINGBOARD 146 RH RED [COLOR OPTION][RED]
1025466293
$561,74 Unit Price incl. VAT
9
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
11
ASM-CLUTCH GUARD SUPPORT
1025155
$73,49 Unit Price incl. VAT
12
ASM-RUNNINGBOARD 146 LH RED [COLOR OPTION][RED]
1025465293
$561,74 Unit Price incl. VAT
12
ASM-RUNNINGBOARD 146 LH BLK [COLOR OPTION][BLACK]
1025465067
$545,99 Unit Price incl. VAT
12
ASM-RUNNINGBOARD 146 LH [COLOR OPTION][NATURAL]
1025465
$561,74 Unit Price incl. VAT
12
ASM-RUNNINGBOARD 146 LH STGRAY [COLOR OPTION][STEALTH GRAY]
1025465804
$577,49 Unit Price incl. VAT
13
SUPPORT-FOOTREST LH MACH STGRY [COLOR OPTION]
5143266804
$125,99 Unit Price incl. VAT
13
SUPPORT-FOOTREST LH MACH [COLOR OPTION]
5143266
$83,99 Unit Price incl. VAT
13
SUPPORT-FOOTREST LH MACH RED [COLOR OPTION]
5143266293
$125,99 Unit Price incl. VAT
13
SUPPORT-FOOTREST LH MACH BLK
5143266067
$125,99 Unit Price incl. VAT
14
CLOSEOFF-FOOTREST LH
5269374
5274617
$157,49 Unit Price incl. VAT
15
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
16
ASM-GUARD CLUTCH [INCL. 4 17 18]
1025167
1029233
$125,99 Unit Price incl. VAT
17
ASM-BRKT OIL BOTTLE FRONT
1025803
1029233
$125,99 Unit Price incl. VAT
18
ASM-BRKT OIL BOTTLE REAR
1025804
1029233
$125,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
