1
Engine displacement
650
2
Year
2022
3
Trim
650 SWITCHBACK XC 146
4
Parts Catalog

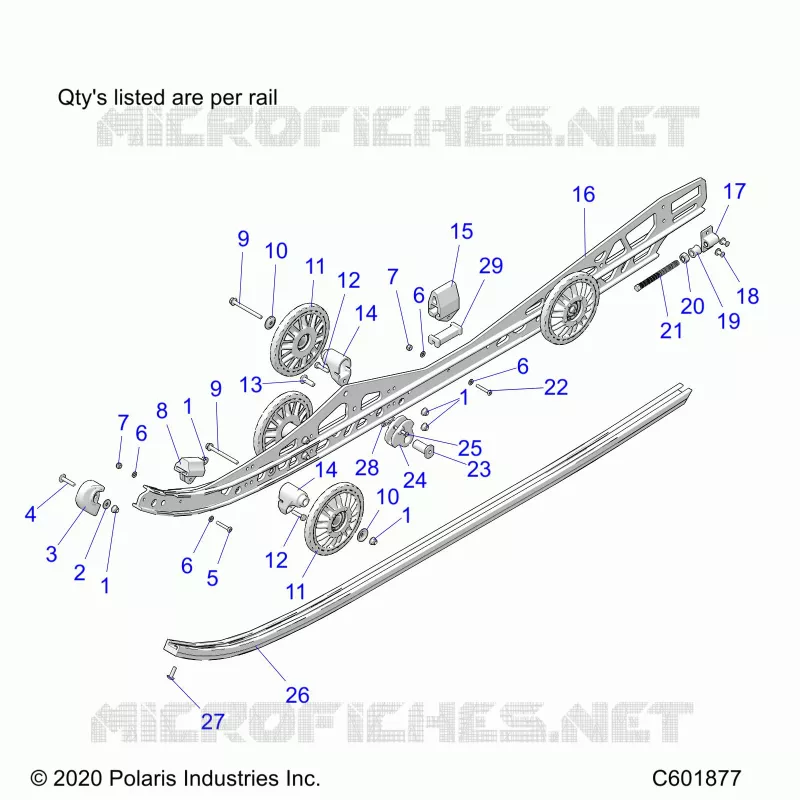

SUSPENSION, RAIL BEAM LH/RH ALL OPTIONS
5
Parts Diagram
Parts Catalog
FRONT WISHBONES
by
DECALS, BLACK SIDE PANEL W/MATTE TITANIUM ACCENT
SUSPENSION, RAIL BEAM LH/RH ALL OPTIONS
1
1
1
1
2
3
4
5
6
6
6
7
8
9
9
10
10
11
11
11
11
11
11
12
12
13
14
14
15
16
16
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
3
CAP RAIL TIP
5452441
$26,24 Unit Price incl. VAT
4
SCR-TXTH-M6X1.0X30 8.8 ZPB
7520133
$6,29 Unit Price incl. VAT
5
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$9,44 Unit Price incl. VAT
6
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
7
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
8
BUMPER JOUNCE FRONT
5522253
$16,79 Unit Price incl. VAT
9
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
7521331-70
$1,56 Unit Price incl. VAT
10
WASHER OFFSET
7556799
$6,29 Unit Price incl. VAT
11
BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]
3515142
$34,64 Unit Price incl. VAT
11
RING RETAINING
7710444
$15,74 Unit Price incl. VAT
11
ASM. WHEEL SPOKED 5.62
1590632
$66,66 Unit Price incl. VAT
12
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$9,44 Unit Price incl. VAT
13
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
14
BLOCK-WHEEL MOUNT
5633278
$47,24 Unit Price incl. VAT
15
BUMPER HOLLOW TALL
5415327
$27,29 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC RH STGRY [INCL.19 20][STEALTH GRAY]
1544457804
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC RH LMSQ [INCL.19 20][LIME SQUEEZE]
1544457630
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC RH BLK [INCL.17 18]
1544457067
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC RH ISKYB [INCL.17 18][SKY BLUE]
1544457737
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC RH RED [INCL.17 18][RED]
1544457293
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC LH STGRY [INCL.19 20][STEALTH GRAY]
1544456804
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC LH BLK ASM-RAIL 146 PREM SVC LH BLK
1544456067
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC LH LMSQ [INCL.19 20][LIME SQUEEZE]
1544456630
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC LH NAT [SHOWN][INCL.17 18]
1544456309
$803,24 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC RH NAT [INCL.17 18]
1544457309
$803,24 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC LH ISKYB [INCL.17 18][SKY BLUE]
1544456737
$997,49 Unit Price incl. VAT
16
ASM-RAIL 146 PREM SVC LH RED [INCL.17 18][RED]
1544456293
$997,49 Unit Price incl. VAT
17
BLOCK IDLER BOLT ADJUSTABLE
5136570
$62,99 Unit Price incl. VAT
18
RIVET
7621501
$4,19 Unit Price incl. VAT
19
SPACER-IDLER ADJ ALUM
5141837
$13,64 Unit Price incl. VAT
20
NUT-HEX-M10X1.5 8 ZOD
7547707
$7,34 Unit Price incl. VAT
21
SCR-HX-M10X1.5X100 8.8 ZOD
7520083
$23,09 Unit Price incl. VAT
22
SCREW-#10-24X1.5 TRX/PN MC-Y
7510504
$10,49 Unit Price incl. VAT
23
SHAFT SPRING ROLLER
5136687
$19,94 Unit Price incl. VAT
24
GUIDE SPRING SQUARE
5434334
$62,99 Unit Price incl. VAT
25
PIN CLEVIS
7661123
$7,34 Unit Price incl. VAT
26
HI-FAX-146 BLK
5526364070
$104,99 Unit Price incl. VAT
27
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$6,29 Unit Price incl. VAT
28
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
29
LINER BUMPER LOW PROFILE
5451787
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
