1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

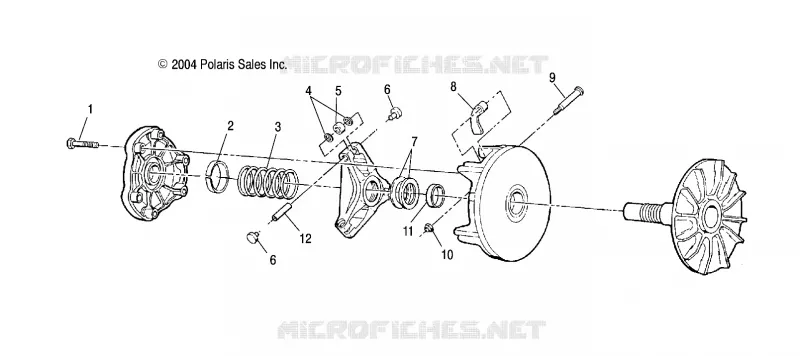

DRIVE CLUTCH
5
Parts Diagram
Parts Catalog
TOOL KIT
by
DRIVEN CLUTCH
DRIVE CLUTCH
-
1
2
3
4
5
6
6
7
7
7
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
-
Asm. Drive Clutch Wide [Incl. All Less Spring and Weights]
1321976
$1 081,49 Unit Price incl. VAT
1
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
2
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
3
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
4
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
5
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
6
Button Clutch
5431936
5439254
$14,69 Unit Price incl. VAT
7
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
7
SPACER-1.350X1.750X.025-Y
5242981
$7,34 Unit Price incl. VAT
7
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
7
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
8
Weight Shift 10-WHF
5632283
$73,49 Unit Price incl. VAT
9
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
10
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
11
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
12
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
