1
Engine displacement
900
2
Year
2013
3
Trim
RANGER 900 XP ALL OPTIONS - R13UH88/UH9E
4
Parts Catalog
BRAKES, PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
BRAKE LINES AND MASTER CYLINDER

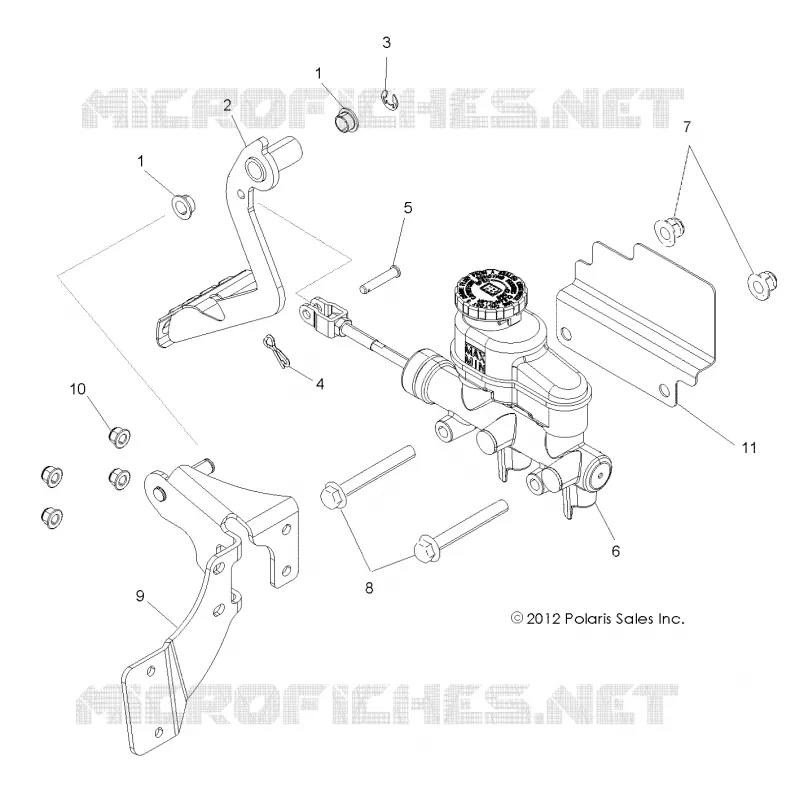

BRAKES, PEDAL AND MASTER CYLINDER
1
1
2
3
4
5
6
10
8
9
10
11
1
1
1
1
2
3
4
5
6
10
8
9
10
11
1
BUSHING PEDAL PIVOT
5437284
$24,14 Unit Price incl. VAT
2
PEDAL BRAKE MATTE BLACK
1015481458
1021765-329
$68,24 Unit Price incl. VAT
3
RING-RETAINING #E# EXT. .500
7710901
$15,74 Unit Price incl. VAT
4
PIN CLIP 14MM
7661140
$2,09 Unit Price incl. VAT
5
PIN-CLEVIS 1/4 X 3/4 -Y
7661843
$4,19 Unit Price incl. VAT
6
Kit Assy Master Cylinder Tandem
2204117
$74,54 Unit Price incl. VAT
7
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
8
SCR-HXFL-M8X1.25X60 8.8 ZOD
7519298
$7,34 Unit Price incl. VAT
9
MOUNT PEDAL BLACK
1018098329
$89,24 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
SHIELD MASTER CYLINDER
5251507
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
