1
Engine displacement
900
2
Year
2013
3
Trim
RANGER 900 XP ALL OPTIONS - R13UH88/UH9E
4
Parts Catalog
BATTERY, EPS
5

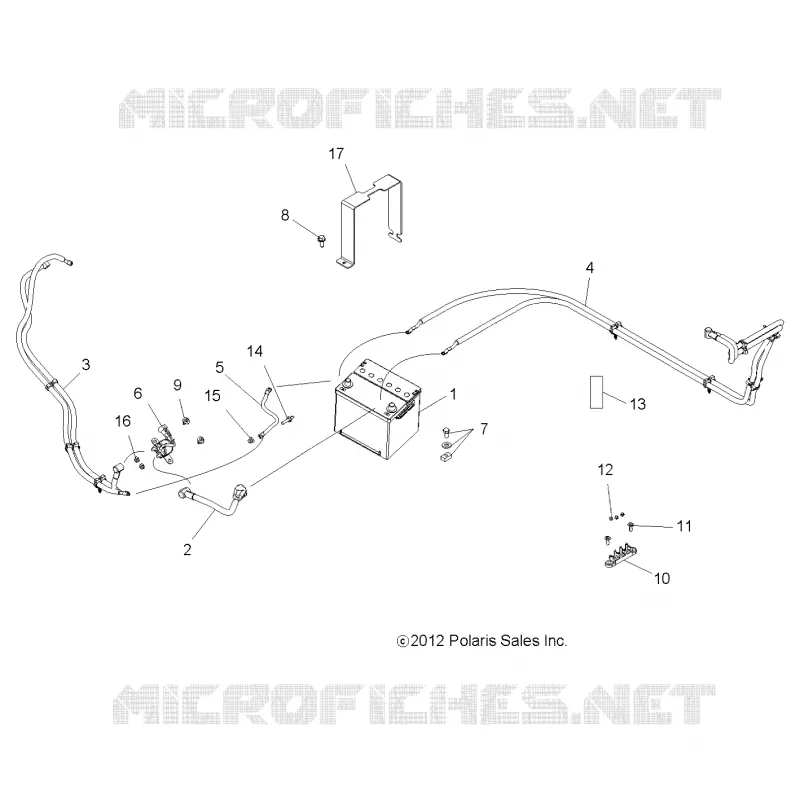

Parts Diagram
Parts Catalog
DASH CONTROLS
by
WIRE HARNESS, EPS
BATTERY, EPS
11
1
BATTERY-575 CCA FLOODED FILLED
4014132
4014132-P
$257,24 Unit Price incl. VAT
1
BATTERY [BUILT 10/01/12 AND BEFORE]
4014043
4014132-P
$257,24 Unit Price incl. VAT
2
CABLE BATTERY TO SOLINOID
4014048
$83,99 Unit Price incl. VAT
3
ASM. CABLE STARTER TO SOLENOID/GROUND
4013376
$157,49 Unit Price incl. VAT
4
CABLE TERMINAL BLOCK GROUND ADD. [E87A9][U87A9][U87AB]
4014060
$204,74 Unit Price incl. VAT
5
CABLE-BAT TO GND
4014049
$83,99 Unit Price incl. VAT
6
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
7
KIT BATTERY BOLT
2202802
$7,34 Unit Price incl. VAT
8
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
9
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
10
BLOCK TERMINAL 3 POST
4011892
$62,99 Unit Price incl. VAT
11
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
12
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
13
TRIM EDGE
5521131
$83,99 Unit Price incl. VAT
14
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT
15
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
16
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
17
BRACKET STRAP BATTERY [BUILT 10/02/12 AND AFTER]
5257221
$73,49 Unit Price incl. VAT
17
BRACKET STRAP BATTERY BLACK [BUILT 10/01/12 AND BEFORE]
5256611329
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
