1
Engine displacement
570
2
Year
2016
3
Trim
RANGER 570 6 SEAT FULL SIZE CREW
4
Parts Catalog

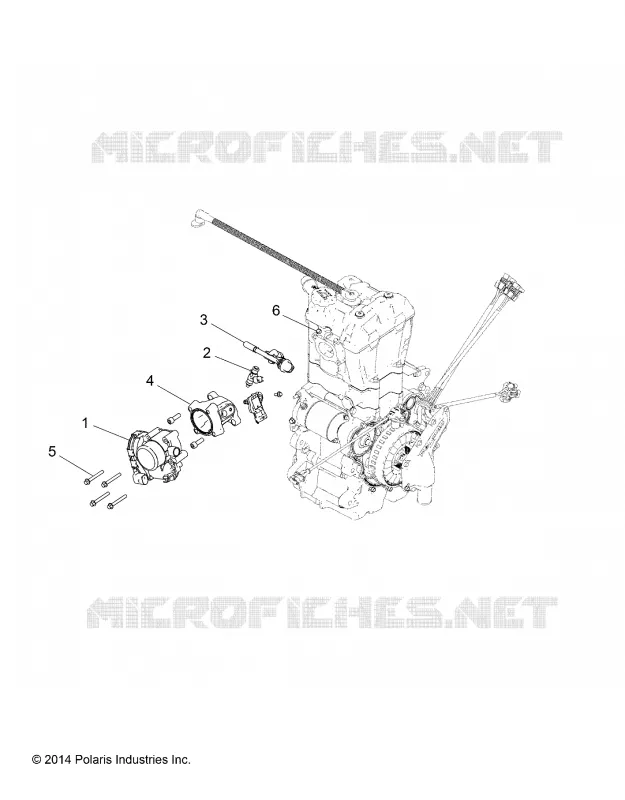

THROTTLE BODY AND FUEL RAIL
5
Parts Diagram
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
by
STEERING
THROTTLE BODY AND FUEL RAIL
1
2
3
4
4
5
6
1
2
3
1
THROTTLE-ETC 46MM
1204455
$997,49 Unit Price incl. VAT
2
INJ-FUEL EV14COMPACT 200G
2521068
$188,99 Unit Price incl. VAT
3
RAIL FUEL
2521403
$206,63 Unit Price incl. VAT
4
SCREW-SH-M8X1.25X25 8.8 ZPC
7519859
$10,49 Unit Price incl. VAT
4
ADAPTER-THROTTLE BODY ETC
5415525
$194,24 Unit Price incl. VAT
5
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
$7,34 Unit Price incl. VAT
6
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
