Parts Catalog
BATTERY
5

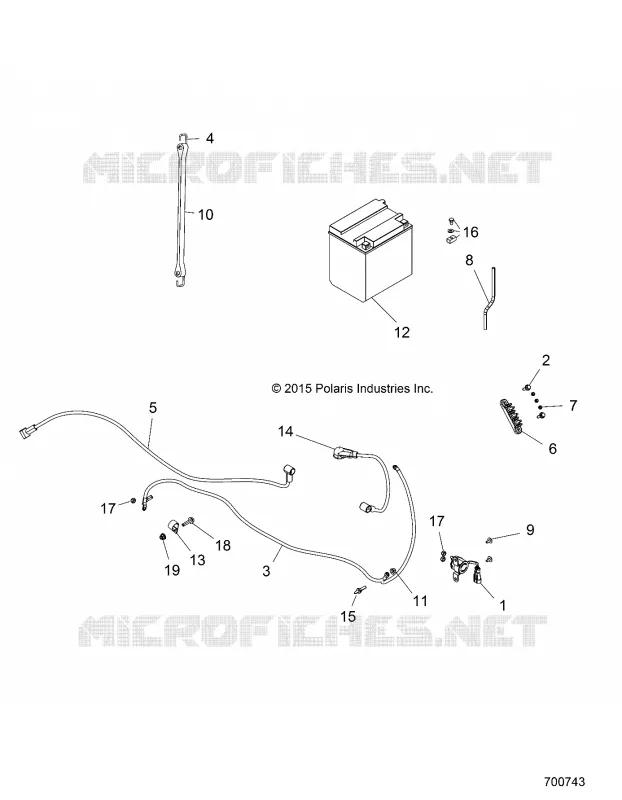

Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ENGINE, ENGINE AND TRANSMISSION MOUNTING
BATTERY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
1
SOLENOID-STARTER SEALED
4014655
$83,99 Unit Price incl. VAT
2
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
3
CABLE GROUND ENG/BATTERY/CHASSIS
4015412
$83,99 Unit Price incl. VAT
4
HOOK-STRAP BATTERY
7081733
2634189
$20,99 Unit Price incl. VAT
5
CABLE SOLENOID TO STARTER
4014305
$68,24 Unit Price incl. VAT
6
BLOCK-TERMINAL 3 POST TALL
4015778
$62,99 Unit Price incl. VAT
7
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
8
TUBE-BATTERY VENT 305MM
5435030
$9,44 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
ASM-STRAP BATTERY [INCL. 4]
2635371
$41,99 Unit Price incl. VAT
11
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
12
BATTERY-14AH DRY W/O ACID
4012622
4010774
$178,49 Unit Price incl. VAT
13
CLAMP-RUBBER COATED .75# ID
7081116
$13,64 Unit Price incl. VAT
14
CABLE-BATT TO SOLENOID/TERMINA
4011497
$83,99 Unit Price incl. VAT
15
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT
16
KIT-BATTERY BOLT 14AH RANGER
2204132
$40,94 Unit Price incl. VAT
17
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
18
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
19
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
