1
Engine displacement
0
2
Year
1995
3
Trim
STORM SKS PDLTRK - 0950982
4
Parts Catalog

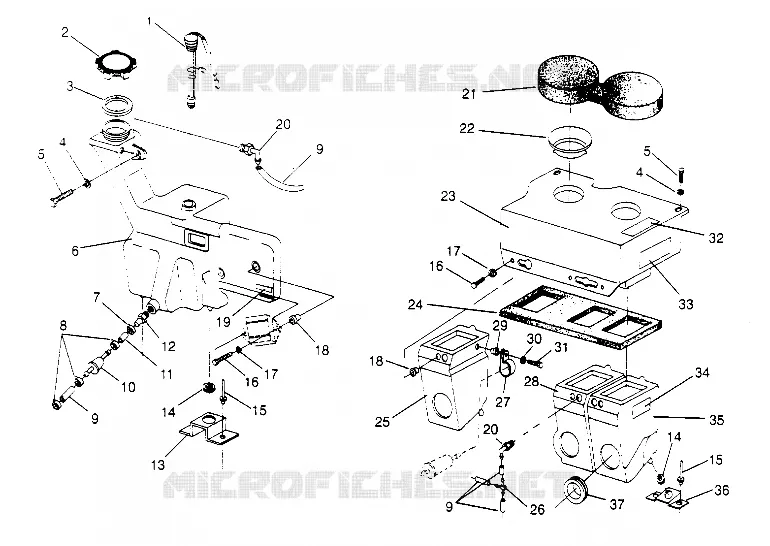

OIL TANK AIR BOX STORM 0950782, STORM SKS 0950582, EURO STORM E (4929012901C007)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO (4929012901C006)
by
TOOL KIT STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO STORM (4929012901C008)
OIL TANK AIR BOX STORM 0950782, STORM SKS 0950582, EURO STORM E (4929012901C007)
1
SENSOR OIL LEVEL
4110134
$141,74 Unit Price incl. VAT
2
CAP OIL TANK
5430779
$31,49 Unit Price incl. VAT
3
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
4
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
5
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
6
TANK OIL W/SEND.UNIT HOLE Substituted by 5432268
5431687
Not Available
7
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
8
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
9
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
10
FILTER
2530009
$12,59 Unit Price incl. VAT
11
LINE OIL FORMED
5410902
Not Available
12
FITTING 3/8 OUTLET
7052110
Not Available
13
BRKT OIL TANK
5240330
Not Available
14
GROMMET RUBBER
5410021
Not Available
15
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
16
SCREW
7512279
$1,56 Unit Price incl. VAT
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
18
NUT WELL
7541923
$10,49 Unit Price incl. VAT
19
DECAL LOW OIL LEVEL
7074664
Not Available
20
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
21
INTAKE ASM FOAM W/MESH Substituted by 1253178
1253131
Not Available
22
INLET PLENUM
5410834
Not Available
23
PLENUM AIR BOX
5431922
Not Available
24
SEAL PLENUM
5810946
Not Available
25
BOX AIR MAG.
5431919
Not Available
26
FITTING T
7052048
$7,34 Unit Price incl. VAT
27
CLAMP CABLE (10)
7080535
Not Available
28
BOX AIR CTR.
5431920
Not Available
29
NUT-WELL(10)
7541918
Not Available
30
WASHER LOCK(10)
7571603
Not Available
31
SCREW(10)
7511954
Not Available
32
DECAL CAUTION(AIR BOX) [No Longer Available]
7072891
Not Available
33
Decal Adjustable Driven Clutch
7073820
Not Available
34
DECAL GREASING
7073426
Not Available
35
BOX AIR PTO.
5431921
Not Available
36
BRKT AIR BOX
5240354
Not Available
37
BOOT
5410271
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
