1
Engine displacement
0
2
Year
1995
3
Trim
STORM SKS PDLTRK - 0950982
4
Parts Catalog

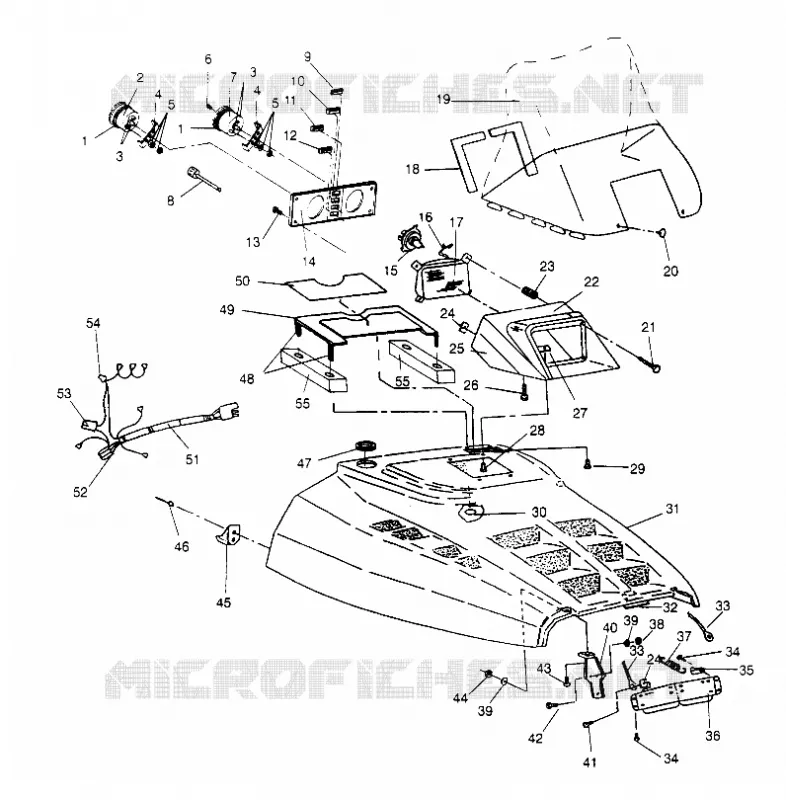

HOOD ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO S (4929012901A012)
5
Parts Diagram
Parts Catalog
NOSEPAN Storm 0950782, Storm SKS 0950582, Euro Storm E950782, Euro Storm S (4929012901A011)
by
STEERING
HOOD ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, EURO S (4929012901A012)
1
CUSHION TACH/SPEEDO RUBBER
3280151
Not Available
2
TACH 3P BACKLIT (Incl. 4 5)
3280192
Not Available
3
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
4
BRKT SPEEDO/TACH
3280153
Not Available
5
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
5
NUT
3280158
Not Available
5
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
6
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
7
SPEEDO ASM 120MPH.BACKLIT (Incl. 3 4 6 12) (US)
3280188
Not Available
8
TAPE FOIL (Not Shown)
5810840
Not Available
8
CABLE SPEEDO W/FOIL
3280143
Not Available
9
INDICATOR#TEMP#WARN.
4040011
$62,99 Unit Price incl. VAT
10
INDICATOR#OIL/BRK#WARN.
4040034
Not Available
11
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
12
INDICATOR #ACC#WARN. (Classic)
4040014
Not Available
13
SCREW SCKT.HD.CAP(10)
7512008
Not Available
14
BEZEL INST.
5430924
Not Available
15
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
16
RETAINER H/L BULB
4032063
Not Available
17
H/L ASM HALOGEN
4032083
Not Available
18
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
18
PAD W/S LH BLACK
5810437
Not Available
19
WINDSHIELD LOW BLK. (Storm)
5431447
Not Available
19
WINDSHIELD SMOKE STD(LIQ)
5431144
$182,69 Unit Price incl. VAT
20
RIVET (PLASTIC LOK)(50) Substituted by 7621509
7621505
7621509
$2,09 Unit Price incl. VAT
21
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
22
HSG INST TOP BLK
5430923070
Not Available
23
SPRING-ADJ
4032002
Not Available
24
NUT SPEED(10)
7670056
Not Available
25
HSG INST.BOTT.BLK.
5430922070
Not Available
26
SCREW(10)
7512009
Not Available
27
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
28
SCREW
7512283
$7,34 Unit Price incl. VAT
29
SCREW(10)
7511877
Not Available
30
O RING (HEAVY) (10) Substituted by 5410970
5410387
5410970
$2,09 Unit Price incl. VAT
31
HOOD STORM #94 Substituted by 2631599-177 (Storm)(Incl. Foam & Foil)
2631599
Not Available
32
SHIELD HEAT CTR.HD BLK.
5240352029
Not Available
33
CABLE HD.RETAINER (Classic & 400)
7080360
$47,24 Unit Price incl. VAT
34
SCREW(10)
7511861
Not Available
35
CLAMP RETAINER
7080372
$7,34 Unit Price incl. VAT
36
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
37
SPRING HOOD CABLE
7041202
Not Available
38
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
39
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
40
HINGE ASM HD BLK
2635005067
Not Available
41
BOLT
7511989
Not Available
42
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
43
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
44
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
45
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
46
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
47
SHIELD INLET RUBBER
5410835
Not Available
48
STAND-OFF EXTENSION
5431685
Not Available
49
PANEL ASM INTAKE MET.BLK. Substituted by 2620095-177
2620078177
Not Available
50
DECAL DASH WARNING Substituted by 7075457
7074883
Not Available
51
HARNESS HEADLIGHT
2460382
Not Available
52
HOUSING
4020052
Not Available
53
HOUSING
4020115
Not Available
54
HOUSING
4020114
Not Available
55
SEAL INTAKE
5811056
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
