1
Engine displacement
500
2
Year
2004
3
Trim
A04BG50AA SCRAMBLER 500 4X4 - A04BG50AA/FA
4
Parts Catalog

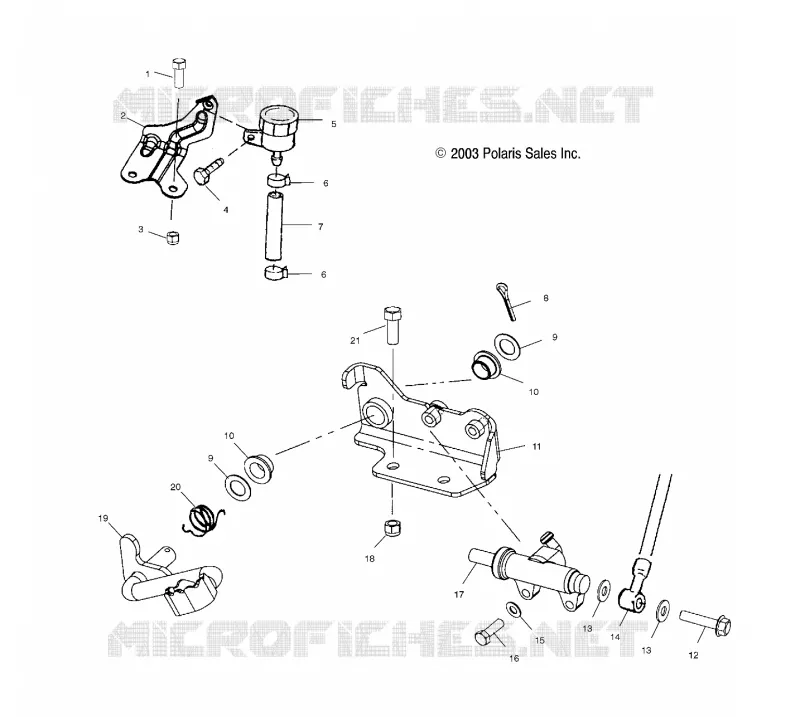

REAR BRAKE MASTER CYLINDER
5
Parts Diagram
Parts Catalog
STEERING POST
by
CARBURETOR
REAR BRAKE MASTER CYLINDER
1
2
3
4
5
6
6
7
8
9
9
10
10
11
12
13
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
BOLT
7512113
$7,34 Unit Price incl. VAT
2
BRKT RESERVOIR MNT BLK
5244091067
$9,23 Unit Price incl. VAT
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
5
Reservoir Brake Rear
1930854
$68,24 Unit Price incl. VAT
6
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
7
HOSE RESERVOIR 1/4ID 4.75 IN
1910404
Not Available
8
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
9
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
10
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
11
MOUNT BRAKE CDS BLK
1910375067
Not Available
12
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
13
SEAL
5410988
$9,44 Unit Price incl. VAT
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
16
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
17
Master Cylinder Foot
1910311
1910791
$325,49 Unit Price incl. VAT
18
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
19
BRAKE ROD CDS GEN 3 BLK
1910377067
Not Available
20
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
21
BOLT(10)
7515321
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
