MAGNETO 500 AND 500 CLASSIC (4919251925026A)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 500 AND 500 CLASSIC (4919251925019A)
by
RECOIL STARTER 500 AND 500 CLASSIC (4919251925027A)

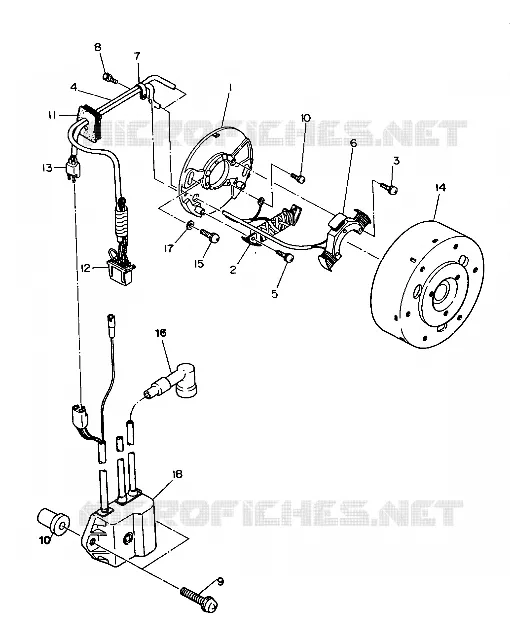

MAGNETO 500 AND 500 CLASSIC (4919251925026A)
1
PLATE ASM. (Incl. 2-13)
3083990
Not Available
2
COIL EXCITER
3083984
$173,24 Unit Price incl. VAT
3
SCREW(10)
3082365
$6,29 Unit Price incl. VAT
4
HARNESS WIRE
3083993
$106,56 Unit Price incl. VAT
5
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
6
STATOR 1
3083991
$535,49 Unit Price incl. VAT
7
CLAMP
3081296
Not Available
8
SCREW&WASHER (10)
3081260
Not Available
9
SCREW&WASHER ASM. Substituted by 3083784
3083562
$4,19 Unit Price incl. VAT
10
NUT-RUBBER
3083240
Not Available
11
GROMMET
3082969
Not Available
12
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
13
COUPLER
3083909
$41,99 Unit Price incl. VAT
14
FLYWHEEL
3083992
Not Available
15
SCREW&WASHER (10)
3082175
Not Available
16
CAP SPARK PLUG Substituted by 4020129
3083155
$52,49 Unit Price incl. VAT
17
WASHER
3082206
$1,04 Unit Price incl. VAT
18
CDI UNIT
3083989
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
