STEERING 500 AND 500 CLASSIC (4919251925020A)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH FROM SERIAL NO. 1841612 (4919251925015B)
by
CRANKCASE 500 AND 500 CLASSIC (4919251925023A)

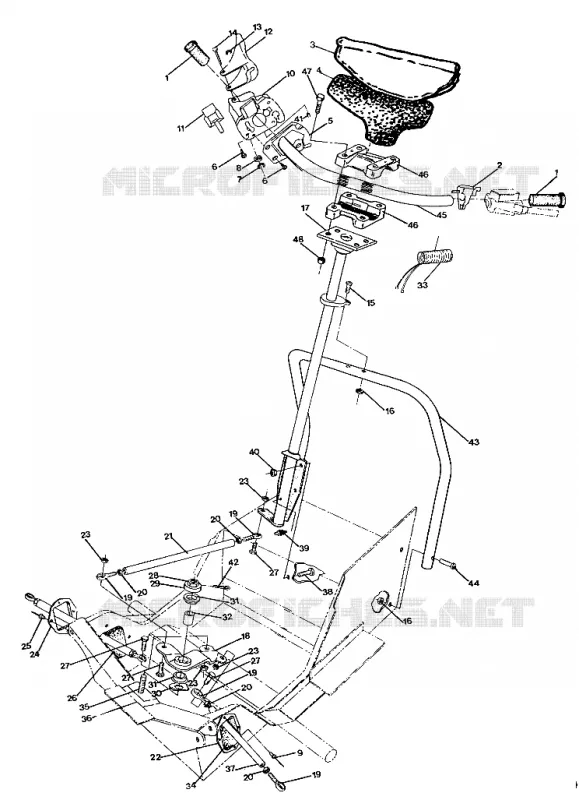

STEERING 500 AND 500 CLASSIC (4919251925020A)
1
GRIP H#BAR BLUE [No Longer Available]
5410272134
Not Available
1
GRIP H#BAR BLACK Substituted by 5410272-067
541027221
$52,49 Unit Price incl. VAT
2
Switch Dimmer
4110107
$115,49 Unit Price incl. VAT
3
COVER H#BAR PAD [No Longer Available] (500 Classic Only)
2690034
Not Available
3
PAD H#BAR BLACK
2690038
Not Available
4
PAD HANDLEBAR
5810448
Not Available
5
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
7
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RIVET (50) Substituted by 7621307
7621302
Not Available
10
BLOCK THROTTLE Substituted by 5431265
5431076
5431592
$73,49 Unit Price incl. VAT
11
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
12
LEVER-THROTTLE (600 600 SE)
5430638
Not Available
13
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
14
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
15
SCREW(10)
7512183
Not Available
16
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
17
POST STEERING Substituted by 1823143-067
1823143
Not Available
18
STEERING ARM CTR. Substituted by 1822040-067
1822040
Not Available
19
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
19
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
20
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
20
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
21
ROD-DRAG LINK
5332712
Not Available
22
PLATE LH BOOTSEAL Substituted by 5210959-067
5210959
Not Available
23
Nut
7542403
Not Available
24
PLATE RH BOOT SEAL
5210904
Not Available
25
RIVET(50)
7621301
Not Available
26
BOOT-TIE ROD
5410328
Not Available
27
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
28
NUT(10)
7542712
$17,84 Unit Price incl. VAT
29
WASHER
7555721
$2,09 Unit Price incl. VAT
30
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
31
BUSHING
3563907
$7,34 Unit Price incl. VAT
32
BUSHING-SPACER
5010161
Not Available
33
GRIP-HEATER ASM HI/LOW
2460311
$115,49 Unit Price incl. VAT
34
BOOT LH
5410388
Not Available
35
BOLT(10)
7512658
Not Available
36
BLOCK-CTR.STEERING
5130534
Not Available
37
ROD TIE BLACK
5332713067
Not Available
38
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
39
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
40
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
41
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
42
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
43
HOOP STEERING Substituted by 1011513-067 (400 600 600 SE)
1011513
Not Available
44
BOLT-CARRIAGE(10)
7512262
Not Available
45
HANDLEBAR Substituted by 5224413-067
5224413
Not Available
46
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
47
ROD TIE (BLK.)
5020432067
Not Available
47
LEVER ASM W/WARMER
2010094
Not Available
47
BOLT(10) (SS)
7512254
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
