1
Engine displacement
325
2
Year
2016
3
Trim
ACE 325 EFI
4
Parts Catalog

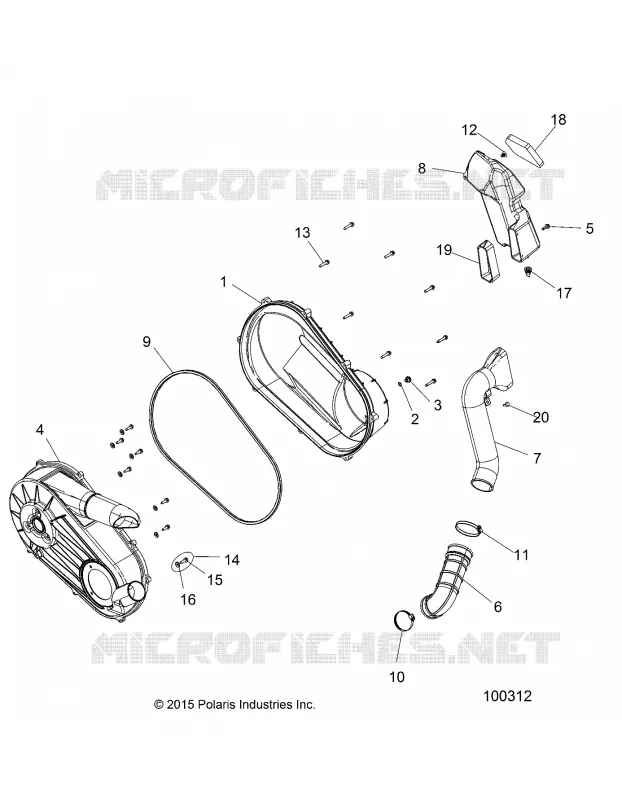

DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
BARKE CALIPER MOUNTING
by
DRIVE TRAIN, MAIN GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
1
ASM. COVER CLUTCH OUTER [INCL. 6 7]
2634179
$346,49 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
4
ASM. CLUTCH COVER INNER
2634864
2634179
$346,49 Unit Price incl. VAT
5
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
6
HOSE INTAKE
5414583
$89,24 Unit Price incl. VAT
7
DUCT-INTAKE CLUTCH
5452666
Not Available
8
BOX INTAKE CLUTCH LH
5450727
$141,74 Unit Price incl. VAT
9
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
10
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
11
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
12
CLIP-PLASTIC DART NYLON
7670088
$3,14 Unit Price incl. VAT
13
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
14
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
15
SCR-TFHFL-M6X1.0X20 ZOD
7519279
$19,94 Unit Price incl. VAT
16
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$9,44 Unit Price incl. VAT
17
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
18
FILTER INTAKE FOAM
5814026
$26,24 Unit Price incl. VAT
19
SEAL FOAM
5814033
$20,99 Unit Price incl. VAT
20
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
