1
Engine displacement
325
2
Year
2016
3
Trim
ACE 325 EFI
4
Parts Catalog
COOLING SYSTEM
5

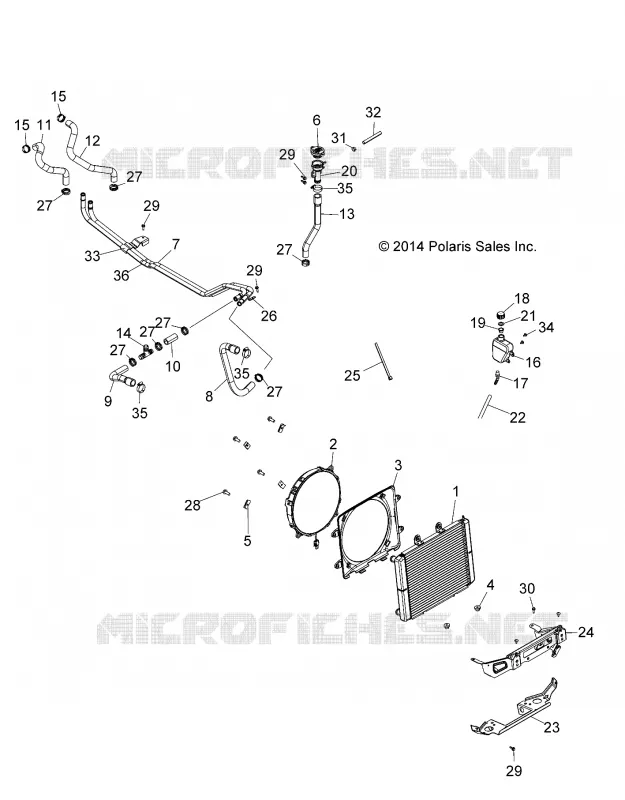

Parts Diagram
Parts Catalog
WIRE HARNESS
by
EXHAUST SYSTEM
COOLING SYSTEM
21
22
23
24
25
26
27
27
27
27
27
27
27
28
29
29
29
29
30
31
32
33
34
35
35
35
36
1
Asm. Radiator Core
1240444
1241480
$871,49 Unit Price incl. VAT
2
FAN-11# ASSEMBLY ATV PKRD
2410413
$493,49 Unit Price incl. VAT
3
SHROUD FAN
5437845
$99,74 Unit Price incl. VAT
4
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
5
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
6
CAP PRESSURE
1240300
$73,49 Unit Price incl. VAT
7
TUBE COOLANT ENGINE OUT
5138389
Not Available
8
HOSE-COOLANT FLARED
5414632
$104,99 Unit Price incl. VAT
9
HOSE-COOLANT FLARED
5414633
$83,99 Unit Price incl. VAT
10
HOSE-COOLANT FRONT
5414634
$29,39 Unit Price incl. VAT
11
HOSE COOLANT REAR
5414635
$89,24 Unit Price incl. VAT
12
HOSE COOLANT REAR
5414636
$89,24 Unit Price incl. VAT
13
HOSE-COOLANT FRONT
5414637
$73,49 Unit Price incl. VAT
14
CONNECTOR-TEE 3/4# BARB
7052093
$15,74 Unit Price incl. VAT
15
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
16
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
17
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
18
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
19
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
20
FILLER REMOTE COOLANT SMALL
5439079
$62,99 Unit Price incl. VAT
21
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
22
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
23
MNT-RADIATOR MATTE BLK
5256171458
$173,24 Unit Price incl. VAT
24
MOUNT RADIATOR UPPER BLACK
5260310329
$293,99 Unit Price incl. VAT
25
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
26
CLAMP-COOLANT LINES
5258642
Not Available
27
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
28
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
29
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
30
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
31
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
32
LINE FUEL
8450120600
$136,49 Unit Price incl. VAT
33
CLAMP-COOLANT LINES
5258169
$20,99 Unit Price incl. VAT
34
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
35
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
36
TUBE COOLANT ENGINE IN
5138390
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
