1
Engine displacement
500
2
Year
2012
3
Trim
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR
4
Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
SIDE NETS
by
CHASSIS, FRAME AND FRONT BUMPER

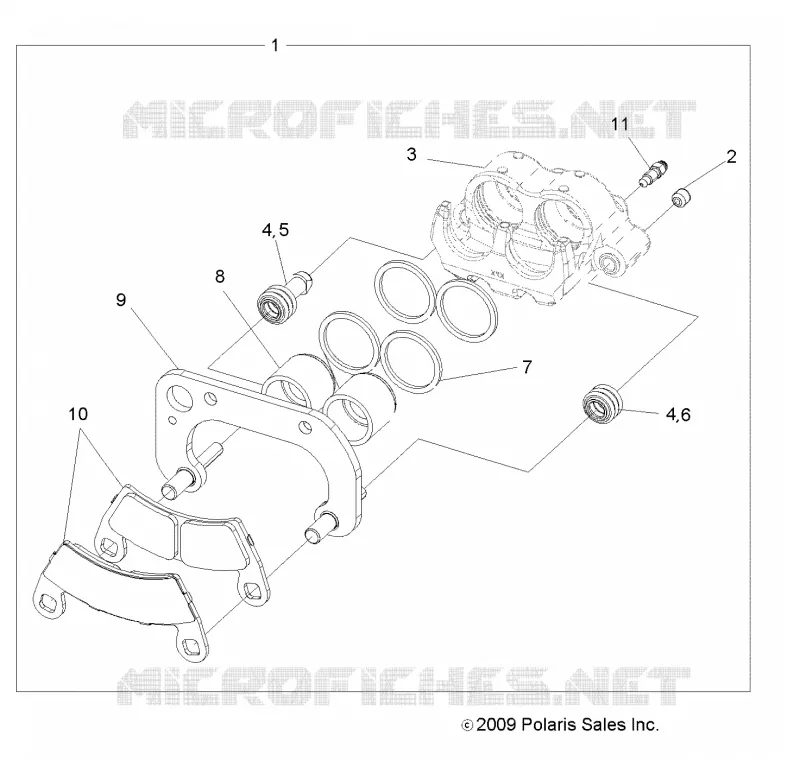

FRONT BRAKE CALIPER
1
1
2
3
3
4
4
5
6
7
8
9
10
11
1
Asm. Caliper Brake DB LH [Incl. All]
1911631
$509,24 Unit Price incl. VAT
1
Asm. Caliper Brake DB RH [Incl. All]
1911632
$509,24 Unit Price incl. VAT
2
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
5
BOOT-PIN BUSHING
5412505
$6,29 Unit Price incl. VAT
6
BOOT-PIN SEAL
5412506
$6,29 Unit Price incl. VAT
7
SEAL-CALIPER INNER 1.375#
5412907
$5,76 Unit Price incl. VAT
8
PISTON-CALIPER 1.375#
5135134
$31,49 Unit Price incl. VAT
9
Asm. Caliper Mount Double Bore
1911348
$89,24 Unit Price incl. VAT
10
KIT-ASM PAD BRAKE DB 1.375 [INCL. 2 PADS]
2203747
2205949
$60,68 Unit Price incl. VAT
11
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
