Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
CYLINDER HEAD
by
HEADLIGHT/BRAKELIGHT
STEERING
1
1
2
3
4
4
5
5
6
6
7
8
8
8
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
14
15
16
17
18
19
1
Bracket Upper Steering Shaft
0450505
$36,74 Unit Price incl. VAT
2
Shaft Steering
0450915
Not Available
3
Asm. Tie Rod LH [CB][CC]
0450987
Not Available
4
PIN COTTER
0450395
$6,29 Unit Price incl. VAT
5
NUT CASTLE
0450502
$17,84 Unit Price incl. VAT
6
PIN COTTER
0450507
$6,29 Unit Price incl. VAT
7
KNUCKLE LH
0450916
$220,49 Unit Price incl. VAT
8
NUT LOCK
0450276
$7,34 Unit Price incl. VAT
9
PIN COTTER
0450719
0453819
$6,29 Unit Price incl. VAT
10
SEAL OIL
0450491
$20,99 Unit Price incl. VAT
11
CIRCLIP
0450161
$10,49 Unit Price incl. VAT
12
BEARING BALL
0450493
$54,59 Unit Price incl. VAT
13
SEAL OIL
0450389
$20,99 Unit Price incl. VAT
14
SPACER INNER
0450390
0455516
$7,34 Unit Price incl. VAT
15
Nut Lock
0450878
$19,94 Unit Price incl. VAT
16
KNUCKLE RH
0450917
$220,49 Unit Price incl. VAT
17
Asm. Tie Rod RH [CB][CC]
0450988
Not Available
18
Nut Flange Hex
0450268
$1,56 Unit Price incl. VAT
19
Sleeve Steering Shaft
0450499
$20,99 Unit Price incl. VAT

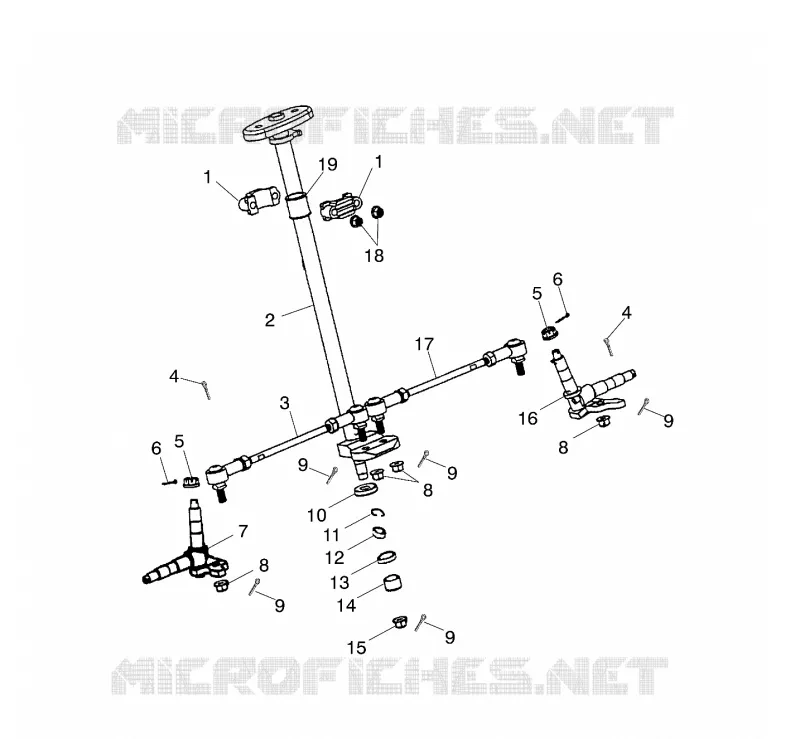

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
