1
Engine displacement
90
2
Year
2003
3
Trim
SCRAMBLER 90 - A03EA09CA
4
Parts Catalog
DRIVE PULLEY
5

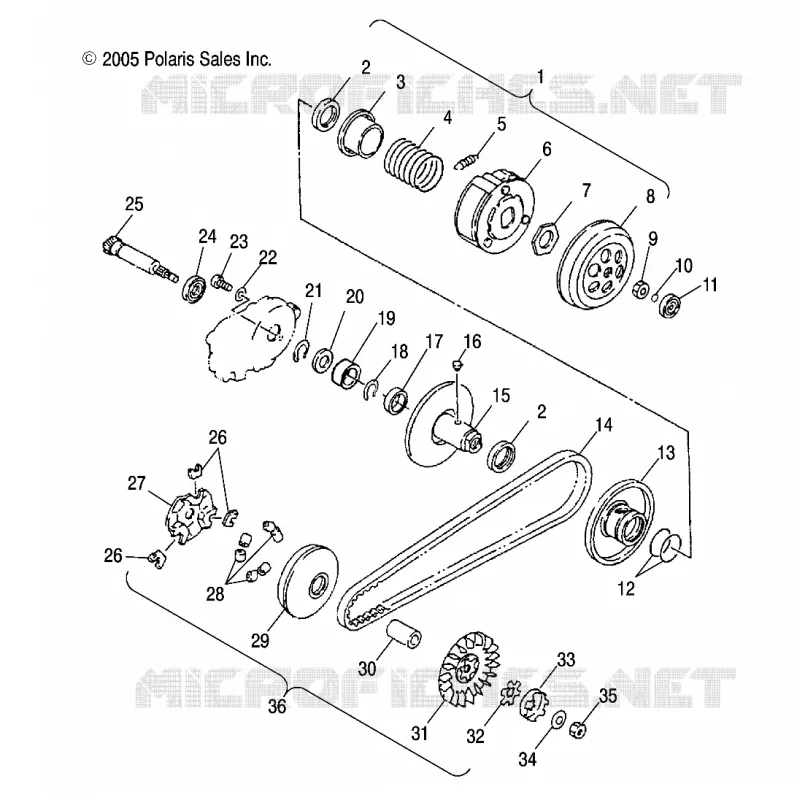

Parts Diagram
Parts Catalog
DRIVE SHAFT
by
GENERATOR/STARTING MOTOR
DRIVE PULLEY
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
1
2
3
4
5
1
Asm. Secondary Sheave [Incl. 2-8]
0450202
Not Available
2
SEAL OIL
0450211
$17,84 Unit Price incl. VAT
3
Seat Spring Secondary
0450219
$26,45 Unit Price incl. VAT
4
Spring Compression
0450217
Not Available
5
Spring Weight Clutch
0450206
Not Available
6
Carrier Clutch
0450204
Not Available
7
Nut
0450221
$13,64 Unit Price incl. VAT
8
Cover Clutch
0450223
$146,99 Unit Price incl. VAT
9
Nut Jam RH
0450224
$9,44 Unit Price incl. VAT
10
O-RING
0450226
$1,56 Unit Price incl. VAT
11
BEARING
0450225
$68,24 Unit Price incl. VAT
12
Ring Oil
0450213
$2,93 Unit Price incl. VAT
13
Wheel Slot Sliding Secondary
0450210
$112,86 Unit Price incl. VAT
14
V-Belt
0450239
$83,25 Unit Price incl. VAT
15
Wheel Slot Fixed Secondary
0450208
$120,74 Unit Price incl. VAT
16
Pin Guide
0450215
$4,71 Unit Price incl. VAT
17
Bearing Ball
0451016
Not Available
18
Circlip
0451017
Not Available
19
Bearing Needle
0451015
Not Available
20
Seal Oil
0450200
$20,99 Unit Price incl. VAT
21
Circlip External
0450198
$9,44 Unit Price incl. VAT
22
WASHER PLAIN
0450041
$9,44 Unit Price incl. VAT
23
Bolt Socket Hex
0450158
$10,49 Unit Price incl. VAT
24
BEARING
0450199
$54,59 Unit Price incl. VAT
25
Asm. Primary Drive
0450195
Not Available
26
Slider
0450234
$13,64 Unit Price incl. VAT
27
Plate Cam
0450232
$99,95 Unit Price incl. VAT
28
Roller Weight
0450229
$19,94 Unit Price incl. VAT
29
Wheel Slot Sliding Primary
0450228
Not Available
30
Bushing
0450236
$36,74 Unit Price incl. VAT
31
Sheave Fixed Primary
0450241
$104,99 Unit Price incl. VAT
32
Washer Claw
0450243
Not Available
33
CLUTCH ONE-WAY
0450245
$31,49 Unit Price incl. VAT
34
Washer Spring
0450247
0453809
$9,44 Unit Price incl. VAT
35
Nut Lock Nylon
0450249
$7,34 Unit Price incl. VAT
36
Asm. Sliding Drive (Incl. 23-29)
0450251
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
