Parts Diagram

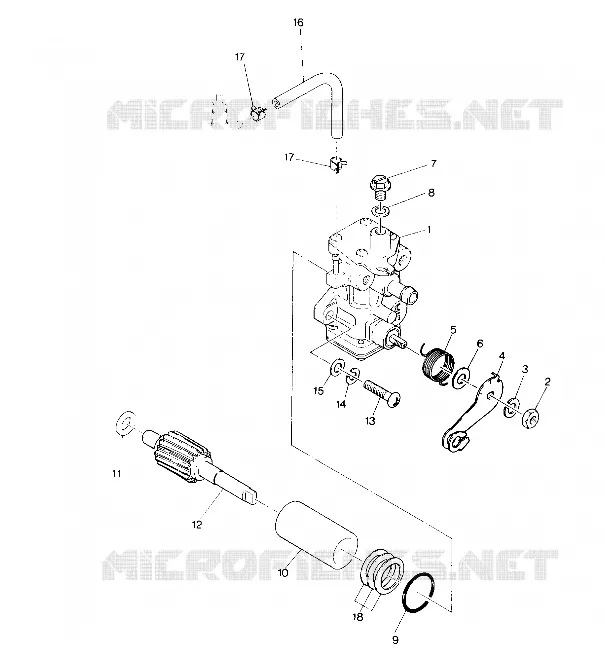

OIL PUMP STAR LITE (4918591859033A) FOR LITE - 0913033 FROM 1991

OIL PUMP INDY LITE (4918591859034A)

Part numbers

KIT TOOL [INCL. 1-3]

3083425

Not Available

NUT

3083120

$6,29 Unit Price incl. VAT

WASHER SPRING

3083121

1205792

$614,24 Unit Price incl. VAT

LEVER CONTROL

3083426

Not Available

SPRING RETURN

3083427

Not Available

COLLAR CAMSHAFT Substituted by 3083445

3083404

Not Available

SCREW-AIR VENT

3083125

Not Available

PACKING(10)

3083126

$7,34 Unit Price incl. VAT

O RING

3083127

Not Available

BUSHING(OIL PUMP)

3083353

$54,59 Unit Price incl. VAT

SPACER *

3083428

$3,14 Unit Price incl. VAT

GEAR SMALL

3083429

Not Available

SCREW Substituted by 3083774

3083132

Not Available

WASHER SPRING(10)

3083133

Not Available

WASHER Substituted by 3083774

3083134

Not Available

PIPE-RUBBER 3

3083140

Not Available

CLAMP HOSE

3083141

$2,09 Unit Price incl. VAT

SPACER 3 .6MM

3083673

5141621

$8,39 Unit Price incl. VAT

SPACER 2 .3MM

3083672

5141620

$6,29 Unit Price incl. VAT

SPACER 1 .15MM

3083671

5141619

$6,29 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
