Parts Catalog
CARBURETOR INDY LITE (4918591859038A)
5
Parts Diagram
Parts Catalog
CARBURETOR STAR LITE (4918591859037A)
by
NOSEPAN CONSOLE INDY LITE AND STAR LITE (4919311931005A)

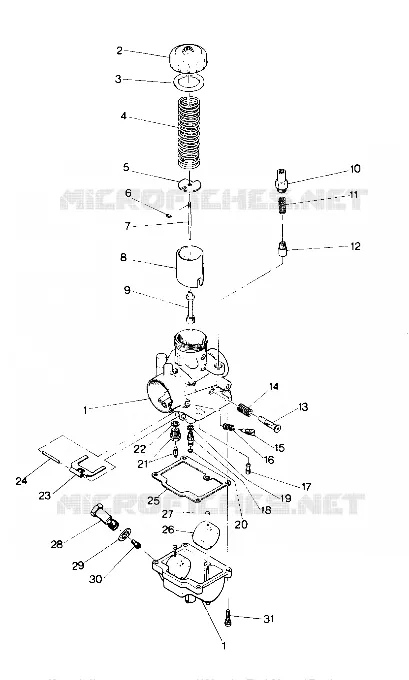

CARBURETOR INDY LITE (4918591859038A)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
CARBURETOR (Incl. 2-31)
3130349
Not Available
2
TOP MIX CHAMBER (Incl. 3)
3130060
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130350
Not Available
5
PLATE THROTTLE
3130002
$47,24 Unit Price incl. VAT
6
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
7
JET NEEDLE
3130155
$52,49 Unit Price incl. VAT
8
VALVE THROTTLE (3.0)
3130323
Not Available
9
JET NEEDLE (0-8)
3130035
Not Available
10
CAP PLUNGER Substituted by 3130359
3130005
Not Available
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130324
$36,74 Unit Price incl. VAT
14
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
18
NEEDLE JET SETTER
3130283
Not Available
19
WASHER
3130014
$3,14 Unit Price incl. VAT
20
O RING
3130015
Not Available
21
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
22
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
23
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
24
PIN FLOAT
3130043
Not Available
25
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
26
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
BOLT BANJO
3130210
Not Available
29
WASHER
3130024
Not Available
30
JET MAIN HX.HD#180(10)
3130119
Not Available
31
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
