ENGINE MOUNTING FOR XPLORER 400 - A01CG38CA FROM 2001

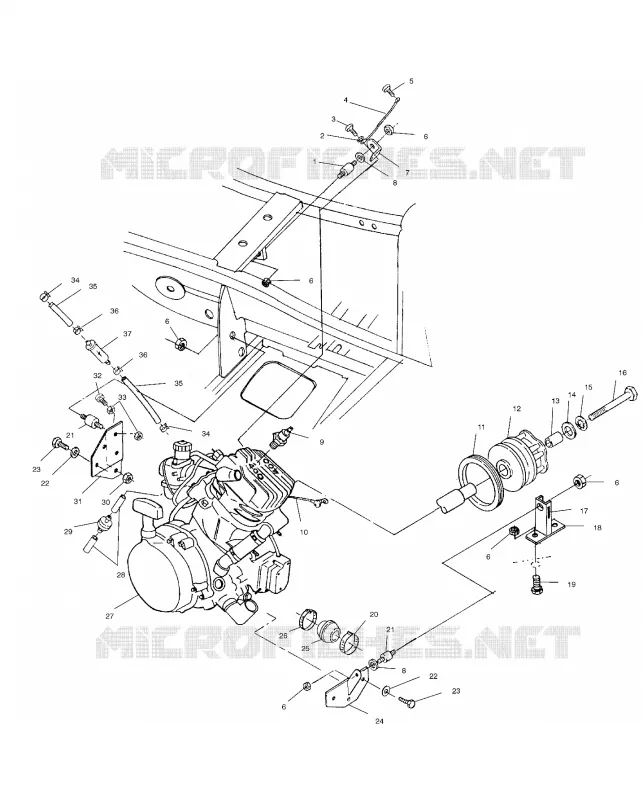

ENGINE MOUNTING

1

MT. RUBBER ENG.

3110038

Not Available

2

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

3

Bolt

7512315

$9,44 Unit Price incl. VAT

4

CABLE GND-ENGINE

4010132

Not Available

5

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$2,09 Unit Price incl. VAT

6

NUT FLANGE LOCK

7547108

$9,44 Unit Price incl. VAT

7

BRKT ENG.MT TOP BLK 400

5242692067

Not Available

8

WASHER-.390X1.12X.060 FL-Y

7555823

$7,34 Unit Price incl. VAT

9

SPARKPLUG (10)

3070156

$7,34 Unit Price incl. VAT

10

CABLE RED SOL/STRTR 34#

4010218

$89,24 Unit Price incl. VAT

11

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

12

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

13

BUSHING-.437 X.770 X.50

5430261

$13,64 Unit Price incl. VAT

14

WASHER-.440X1.25X.190 FL-Y

5210748

$7,34 Unit Price incl. VAT

15

WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]

7575202

$9,44 Unit Price incl. VAT

16

BOLT(10) *

7512566

$52,49 Unit Price incl. VAT

17

Edge Trim

836001204

$83,99 Unit Price incl. VAT

18

MOUNT FR.ENGINE BLK.

1040687067

Not Available

19

SCREW (10)

7517289

$9,44 Unit Price incl. VAT

20

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

21

MOUNT RUBBER ENG.

3110042

Not Available

22

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

23

SCREW

7512490

$7,34 Unit Price incl. VAT

24

MOUNT ENGINE

1040231067

Not Available

25

BOOT CLUTCH INLET 2.4X2.1X5.2

5411681

Not Available

26

Clamp Narrow Band

7080656

$9,44 Unit Price incl. VAT

27

ENG.EC38PLE08 09 11 [No Longer Available] The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization require

3085821

Not Available

28

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

29

VENT CHECKVALVE

7051011

Not Available

30

NUT FLEXLOC

7542411

$6,29 Unit Price incl. VAT

31

BRKT ENG.MT REAR BLK

5242463067

Not Available

32

MT TORQUE STOP RUBBER

3110048

$11,96 Unit Price incl. VAT

33

NUT JAM [ACCESSORY]

7542432

$7,34 Unit Price incl. VAT

34

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

35

FUEL LINE-1/4 ID (SVC) 600 CM [BULK]

8450040600

$136,49 Unit Price incl. VAT

36

CLAMP HOSE

7080534

$3,14 Unit Price incl. VAT

37

FILTER FUEL (10)

2530008

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
