1
Engine displacement
400
2
Year
2001
3
Trim
XPLORER 400 - A01CG38CA
4
Parts Catalog

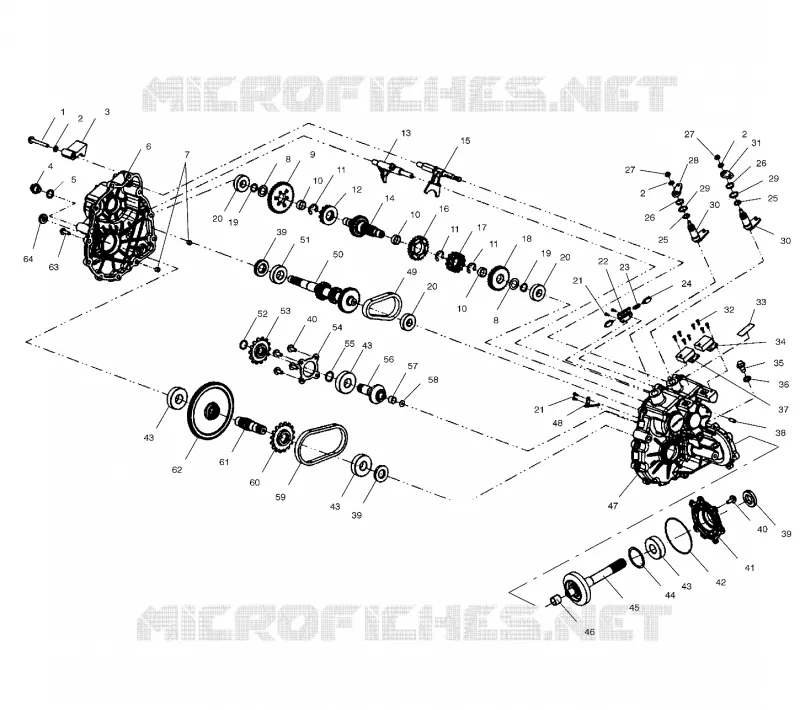

GEARCASE (IF BUILT BEFORE 4/01/01)- A01CG38CA (4963916391C007)
5
Parts Diagram
Parts Catalog
TOOL KIT
by
GEARCASE (IF BUILT AFTER 4/01/01)- A01CG38CA (4963916391D07)
GEARCASE (IF BUILT BEFORE 4/01/01)- A01CG38CA (4963916391C007)
-
1
2
2
2
3
4
5
6
7
8
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
19
19
20
20
20
21
21
22
23
24
25
25
26
26
27
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
39
39
40
40
41
42
43
43
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
-
GEARCASE HLR CDS XPL 400 (Incl 1-64)(Confirm part number prior to ordering parts)(If built after 7/01/99)
1341326
Not Available
1
SCREW
3233525
Not Available
2
WASHER
3233054
$12,59 Unit Price incl. VAT
3
DAMPENER CARB.VIBRATION
3233526
Not Available
4
Plug
3233448
$41,99 Unit Price incl. VAT
5
Washer
3233035
Not Available
6
GEARCASE-LH
3233632
Not Available
7
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
8
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
$17,84 Unit Price incl. VAT
9
GEAR 33T
3233731
Not Available
10
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
11
Ring Retaining
3233720
$17,84 Unit Price incl. VAT
12
Engagement Dog Low
3233732
$330,74 Unit Price incl. VAT
13
Fork Shift Low
3233706
$192,14 Unit Price incl. VAT
14
Shaft Reverse 31T
3233736
Not Available
15
FORK SHIFT HIGH/REV
3233633
$262,49 Unit Price incl. VAT
16
Sprocket 24T
3233719
$204,74 Unit Price incl. VAT
17
DOG ENGAGEMENT HIGH/REV
3233721
$330,74 Unit Price incl. VAT
18
GEAR 30T
3233722
Not Available
19
RING RETAINING
3233177
$12,59 Unit Price incl. VAT
20
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
21
SCREW Substituted by 3233747
3233033
Not Available
22
BRACKET INTERLOCK
3233309
$33,06 Unit Price incl. VAT
23
SPRING
3233032
$26,24 Unit Price incl. VAT
24
PIN INTERLOCK
3233308
Not Available
25
O-RING
3233548
$52,49 Unit Price incl. VAT
26
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
27
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
28
Bellcrank
3233547
$89,24 Unit Price incl. VAT
29
WASHER
3233040
$17,84 Unit Price incl. VAT
30
Shaft Shift High/Low/Reverse
3233549
Not Available
31
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
32
SCREW Substituted by 3233749
3233691
3233749
$10,49 Unit Price incl. VAT
33
DECAL-SWITCH
3233636
Not Available
34
SWITCH-H/R ITW
3233635
$262,49 Unit Price incl. VAT
35
PLUG OIL FILL
3233711
Not Available
36
WASHER
3233324
$13,64 Unit Price incl. VAT
37
SWITCH ITW 2 POSITION
3233617
Not Available
38
VENT
3233037
Not Available
39
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
40
Screw
3233539
Not Available
41
Cover Snorkel
3233556
Not Available
42
O-Ring
3233555
$11,01 Unit Price incl. VAT
43
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
44
Shim
3233554
$62,99 Unit Price incl. VAT
45
SNORKEL SUBASM SHAFT
3233723
Not Available
46
BEARING
3233552
$41,99 Unit Price incl. VAT
47
GEARCASE RH H/L/R
3233799
Not Available
48
Deflector Oil
3233043
$21,20 Unit Price incl. VAT
49
CHAIN SILENT 34P
3233036
Not Available
50
SHAFT-INPUT HIGH/LOW/REVERSE
3233704
Not Available
51
BEARING
3233019
$54,59 Unit Price incl. VAT
52
Ring Retaining
3233537
$10,49 Unit Price incl. VAT
53
Sprocket 14/22T
3233538
Not Available
54
COVER CTR.DRIVE BRG.
3233263
Not Available
55
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
56
Shaft Pinion 13T
3233540
$256,19 Unit Price incl. VAT
57
BUSHING GARLOCK
3233541
$41,99 Unit Price incl. VAT
58
Washer
3233542
$20,99 Unit Price incl. VAT
59
Chain Roller
3233546
$120,74 Unit Price incl. VAT
60
Sprocket 16/26T
3233545
$94,49 Unit Price incl. VAT
61
Shaft Output
3233544
$262,49 Unit Price incl. VAT
62
Gear 98T
3233558
$342,29 Unit Price incl. VAT
63
SCREW
3233252
$9,44 Unit Price incl. VAT
64
Bushing Pivot
3233527
$57,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
