Engine displacement
500
2
Year
2004
3
Trim
RANGER 2X4,4X4,6X6 - A04RB42AA
4
Parts Catalog

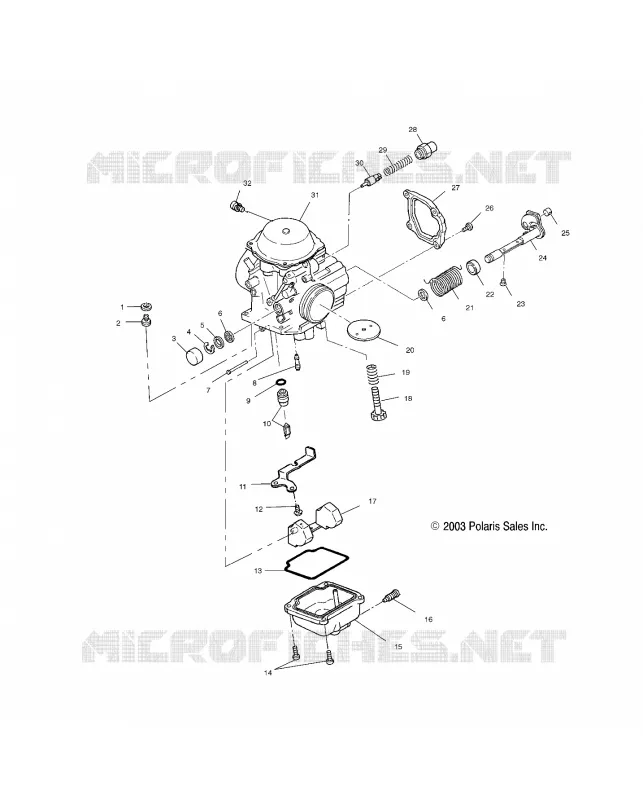

CARBURETOR
5
Parts Diagram
Parts Catalog
REAR GEARCASE (6X6)
by
CRANKSHAFT AND PISTON
CARBURETOR
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
1
WASHER
3130014
$3,14 Unit Price incl. VAT
2
Jet Main [#135][4x4][6x6]
3131426
$16,79 Unit Price incl. VAT
2
Jet Main [#135][2x4]
3130563
$16,79 Unit Price incl. VAT
3
CAP
3130519
$19,94 Unit Price incl. VAT
4
E-Ring
3130518
$3,14 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SEAL
3130515
$20,99 Unit Price incl. VAT
7
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
8
JET PILOT #42.5 (#42.5)
3130526
$62,99 Unit Price incl. VAT
8
Jet Pilot [#42.5][4x4][6x6]
3131421
3130526
$62,99 Unit Price incl. VAT
9
O-RING
3130533
$10,49 Unit Price incl. VAT
10
Valve Needle
3131361
Not Available
11
PLATE
3130594
$62,99 Unit Price incl. VAT
12
SCREW
3130591
$7,34 Unit Price incl. VAT
13
O-RING
3130532
$57,74 Unit Price incl. VAT
14
SCREW
3130520
$3,14 Unit Price incl. VAT
15
FLOAT BODY ASM
3131212
Not Available
16
SCREW
3130521
$18,89 Unit Price incl. VAT
17
FLOAT ASM.
3130529
$157,49 Unit Price incl. VAT
18
Screw Adjust
3131423
$41,99 Unit Price incl. VAT
19
SPRING
3130836
$15,74 Unit Price incl. VAT
20
VALVE THROTTLE (100)
3130502
$99,74 Unit Price incl. VAT
21
SPRING
3130589
$52,49 Unit Price incl. VAT
22
RING
3130514
$13,64 Unit Price incl. VAT
23
SCREW
3130501
$7,34 Unit Price incl. VAT
24
SHAFT ASM THROTTLE
3130513
$146,99 Unit Price incl. VAT
25
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
26
SCREW
3130535
$13,64 Unit Price incl. VAT
27
COVER
3130511
$83,99 Unit Price incl. VAT
28
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
29
SPRING
3130538
$10,49 Unit Price incl. VAT
30
PLUNGER ASM. Substituted by 3130539
3130593
3130539
$73,49 Unit Price incl. VAT
31
Asm. Carburetor [2x4][Incl. All Less 25-27]
3131519
$1 065,74 Unit Price incl. VAT
31
Asm. Carburetor [4x4][6x6][Incl. All Less 1 25-27 32]
3131441
$1 065,74 Unit Price incl. VAT
32
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
