1
Engine displacement
500
2
Year
1996
3
Trim
500 EFI SKS - 0962574
4
Parts Catalog

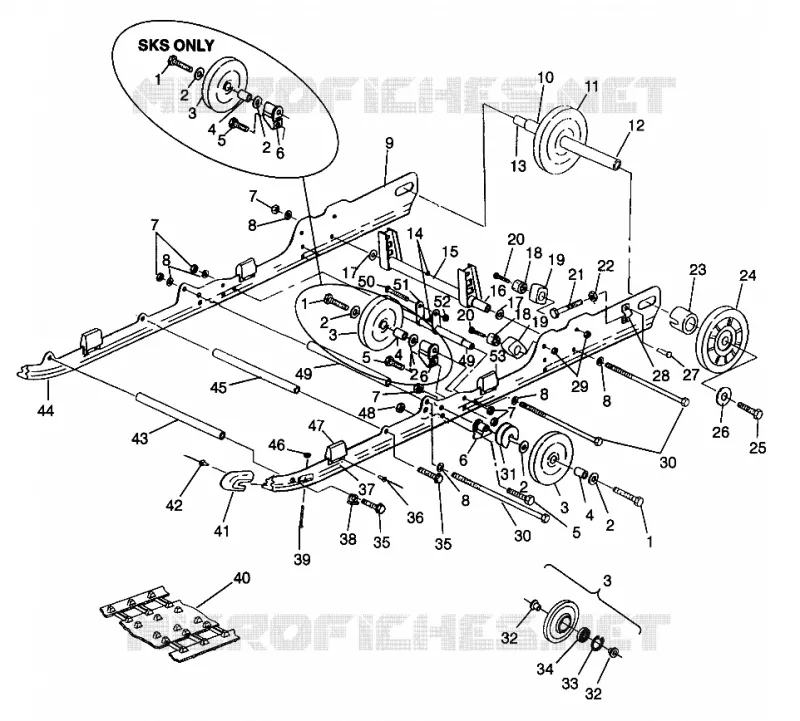

SUSPENSION 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI S (4931983198B010)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI (4931983198B009)
by
FRONT TORQUE ARM 500 EFI RMK 0962974 (4931983198B012)
SUSPENSION 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI S (4931983198B010)
1
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
2
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
3
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
4
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
5
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
6
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
7
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
8
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
9
RAIL ASM LH 133#
1540946
Not Available
9
RAIL ASM RH 133#
1540947
Not Available
10
SPACER INNER IDLER
5010169
Not Available
11
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
12
SPACER IDLER R.INNER
5333086
Not Available
13
SHAFT IDLER
5020722
Not Available
14
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
15
ARM R.PIVOT
1540971067
Not Available
16
SHAFT PIVOT ARM
5020723
$47,24 Unit Price incl. VAT
17
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
18
MOUNT BUMPER
5131113
$52,49 Unit Price incl. VAT
19
BUMPER PIVOT ARM
5410925
$26,24 Unit Price incl. VAT
20
BOLT
7515537
$15,74 Unit Price incl. VAT
21
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
22
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
23
SPACER-IDLER-OUTER
5332641
Not Available
24
WHEEL IDLER OUTER RED (400 650 Only)
1594039
Not Available
25
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
26
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
27
RIVET
7621501
$4,19 Unit Price incl. VAT
28
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
29
Nut
7542403
Not Available
30
SCREW Substituted by 7517353
7515549
Not Available
31
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
32
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
33
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
34
BEARING
3514303
$20,99 Unit Price incl. VAT
35
BOLT
7515542
Not Available
36
RIVET
7621476
$2,09 Unit Price incl. VAT
37
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
38
BRKT-SHAFT SUPPORT
5241443
Not Available
39
SCREW
7515175
$7,34 Unit Price incl. VAT
40
CLIP TRACK(CAMOPLAST) (10)
5222839
5251273
$18,89 Unit Price incl. VAT
40
TRACK 133#X1# MOD(LIGHTNING) (SKS EURO)
5411060
Not Available
40
CLIP GUIDE
5222840
5251274
$13,64 Unit Price incl. VAT
40
TRACK 133#X1.25# CAMO (RMK)
5411021
Not Available
41
COVER RAIL TIP Substituted by 5433005
5431421
Not Available
42
RIVET
7621435
$2,09 Unit Price incl. VAT
43
SHAFT PIVOT ARM
5020723
$47,24 Unit Price incl. VAT
44
SLIDER BLACK(2) (Black) (500 Classic Only)
5521320
Not Available
45
SHAFT PIVOT ARM
5020724
$47,24 Unit Price incl. VAT
46
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
47
BUMPER SUSPENSION
5811097
Not Available
48
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
49
SHAFT-.740X.390X8.490 6066
5333404
$47,24 Unit Price incl. VAT
50
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
51
ARM SHOCK PIVOT
1541001067
Not Available
52
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
53
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
