HOOD 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI SKS E9 (4931983198A011) FOR 500 EFI SKS - 0962574 FROM 1996

NOSEPAN 500 EFI SKS 0962574, 500 EFI RMK 0962974, and EUROPEAN 500 EFI SKS (4931983198A010)

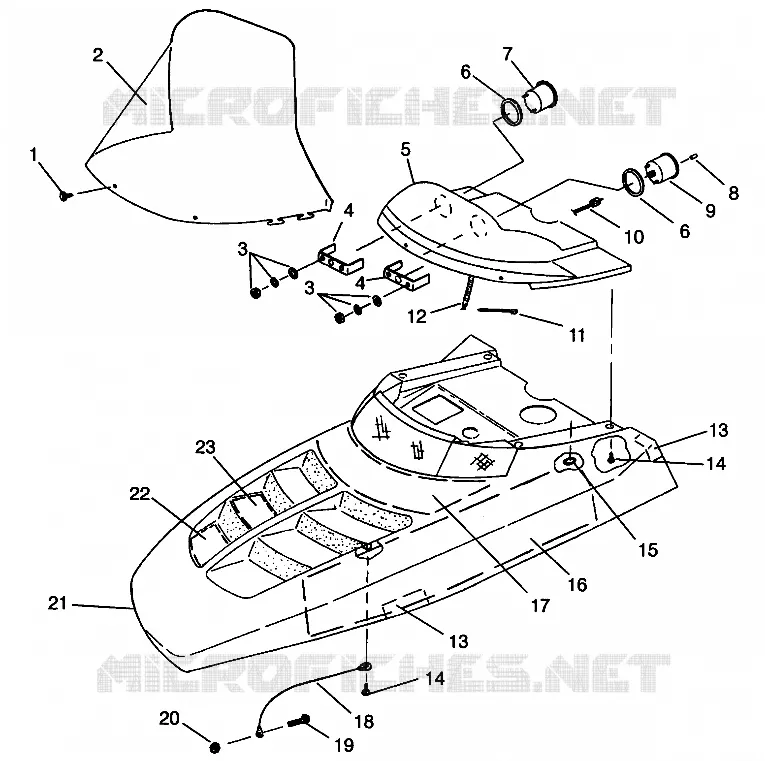

HOOD 500 EFI SKS 0962574, 500 EFI RMK 0962974, AND EUROPEAN 500 EFI SKS E9 (4931983198A011)

1

RIVET PLASTI-LOC

7621509

$2,09 Unit Price incl. VAT

2

WNDSHLD STD SMOKE EV. (Trail)

5431930

Not Available

3

WASHER SPLIT LOCK

3280156

$1,04 Unit Price incl. VAT

3

NUT

3280158

Not Available

3

WASHER FLAT (10)

3280157

$4,19 Unit Price incl. VAT

4

BRKT TACH/SPEEDO 5#

3280210

$52,49 Unit Price incl. VAT

5

HOUSING ASM INSTR.

2652146

Not Available

6

CUSHION TACH/SPEEDO RUBBER

3280209

$7,34 Unit Price incl. VAT

7

BULB TAILLIGHT(10)

4030015

$8,39 Unit Price incl. VAT

7

DESC NOT_AVAILABLE (Incl. 3 4 6)

3281205

Not Available

8

KNOB TRIP ODOMETER LH THD.

3280186

$19,94 Unit Price incl. VAT

9

SPEEDO BACKLIT (Incl. 3 4 6 8) (US)

3280204

Not Available

9

BULB TAILLIGHT(10)

4030015

$8,39 Unit Price incl. VAT

9

SPEEDO BACKLIT 190 KPH (Incl. 3 4 6 8) (EURO)

3280212

$211,56 Unit Price incl. VAT

10

TAPE FOIL 1.50 X 7.50

5810831

Not Available

10

CABLE SPEEDO.

3280094

$115,49 Unit Price incl. VAT

11

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

12

HARNESS H/L (500EFI)

2460416

Not Available

13

FOIL TAPE 1.5X6

5810949

$6,29 Unit Price incl. VAT

14

SCREW(10)

7512070

$2,09 Unit Price incl. VAT

15

RETAINER WINDSHIELD

5410970

$2,09 Unit Price incl. VAT

16

FOIL RH HOOD

5810905

Not Available

16

FOAM RH HOOD

5810877

Not Available

16

FOAM LH HOOD

5810876

Not Available

17

FOAM HOOD CTR.

5810875

Not Available

18

CABLE HOOD RETAINER

7080521

$47,24 Unit Price incl. VAT

19

BOLT

7511930

$4,19 Unit Price incl. VAT

20

NUT-10-24-FLEX LOC-Z

7541906

$6,29 Unit Price incl. VAT

21

HOOD ASM (Incl. 17 20-22 27 28)

2631591136

Not Available

22

FOIL HOOD FRONT

5810874

Not Available

23

FOIL HOOD CTR.

5810873

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
