Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5

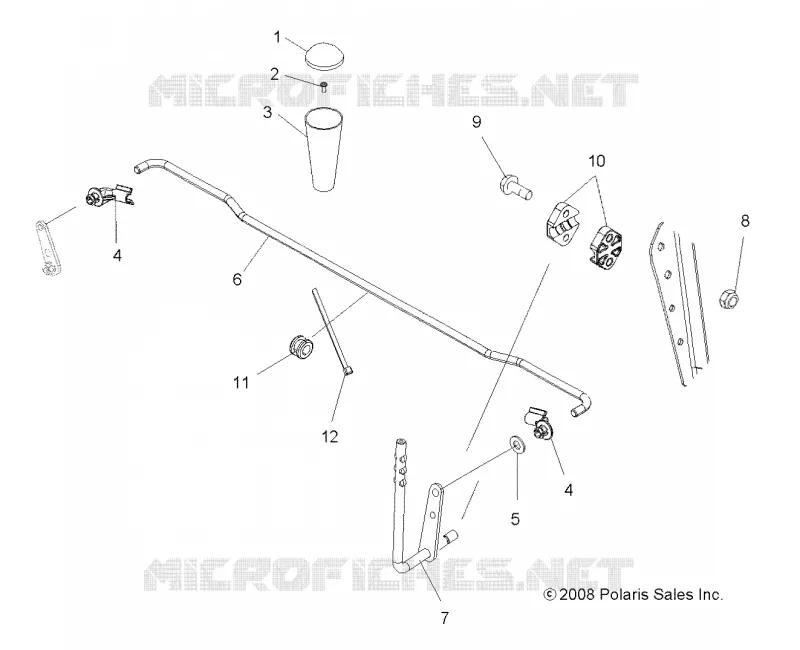

Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT
DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
4
5
6
7
8
9
10
11
12
1
2
3
3
4
4
1
Cover Drum Shift
5412003
$23,09 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
4
BUSHING SNAP LINKAGE
5436722
$7,34 Unit Price incl. VAT
5
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
6
Rod Shifter
5335437
Not Available
7
HANDLE SHIFT HANDLE BLACK
1015598067
$125,99 Unit Price incl. VAT
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
Bolt Flange
7518342
$6,29 Unit Price incl. VAT
10
MOUNT GEAR SELECTOR
5435042
$12,59 Unit Price incl. VAT
11
GROMMET-ELEC SHOCK WIRE SLIT
5413317
$5,24 Unit Price incl. VAT
12
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
