1
Engine displacement
700
2
Year
2008
3
Trim
SPORTSMAN X2 700 EFI - A08TN68AX/AZ
4
Parts Catalog

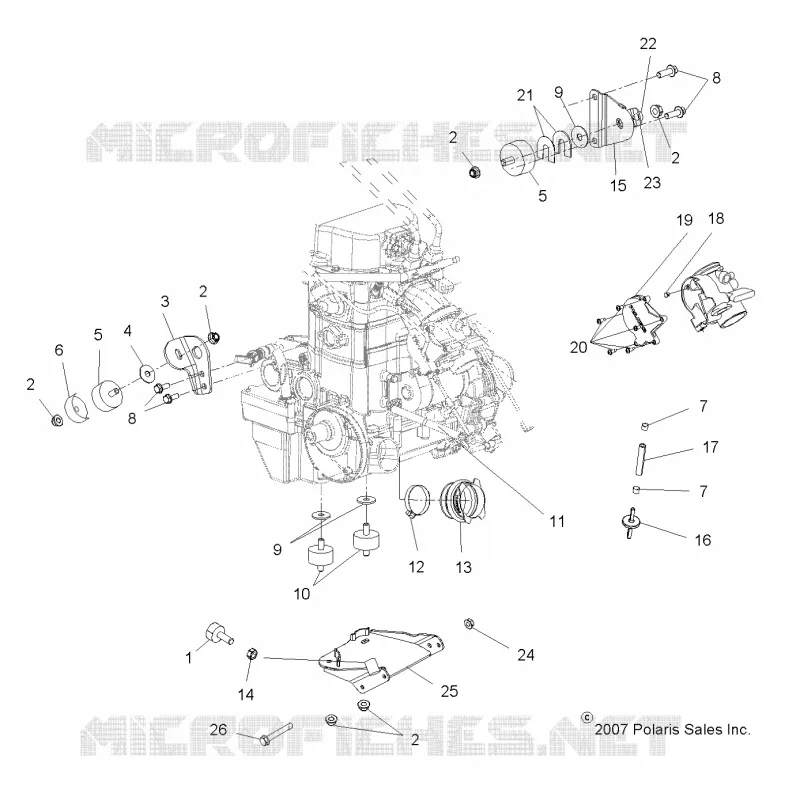

ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, FUEL INJECTOR
by
OIL PUMP AND WATER PUMP
ENGINE, MOUNTING
1
2
2
2
2
2
3
4
5
5
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
1
STOP-TORQUE COURSE 3/8-16 1.50
3021354
$47,24 Unit Price incl. VAT
2
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
3
Mount Engine Lower Front Black
5244771067
$220,49 Unit Price incl. VAT
4
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
5
ISOLATOR
3022071
3024012
$83,99 Unit Price incl. VAT
6
Bracket Torque Stop
5245043
$31,49 Unit Price incl. VAT
7
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
8
Bolt Hex Flange
7518364
$3,14 Unit Price incl. VAT
9
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
10
ISOLATOR
3022076
Not Available
11
CABLE-BLK(FRAME/ENGINE)
4011546
$27,29 Unit Price incl. VAT
12
Clamp Hose
7081193
7081623
$5,76 Unit Price incl. VAT
13
Boot Intake
5413170
Not Available
14
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
15
Bracket Mount Engine Top
5250318
Not Available
16
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
17
HOSE
845011304
$23,09 Unit Price incl. VAT
18
Guide Throttle Cable
3131514
3130543
$62,99 Unit Price incl. VAT
19
Asm. Cover w/O-Ring
1202578
Not Available
20
Screw Shoulder
3131515
$19,94 Unit Price incl. VAT
21
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
21
SHIM CHAINCASE .080
5210760
$6,29 Unit Price incl. VAT
22
Bumper Rubber
5413087
$5,24 Unit Price incl. VAT
23
Bracket Cab Extender
5250916
Not Available
24
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
25
Mount Rear Black
1016163329
$85,88 Unit Price incl. VAT
26
SCR-5/16-18X7.5 HXCP GR Y
7518648
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
