1
Engine displacement
700
2
Year
2008
3
Trim
SPORTSMAN X2 700 EFI - A08TN68AX/AZ
4
Parts Catalog

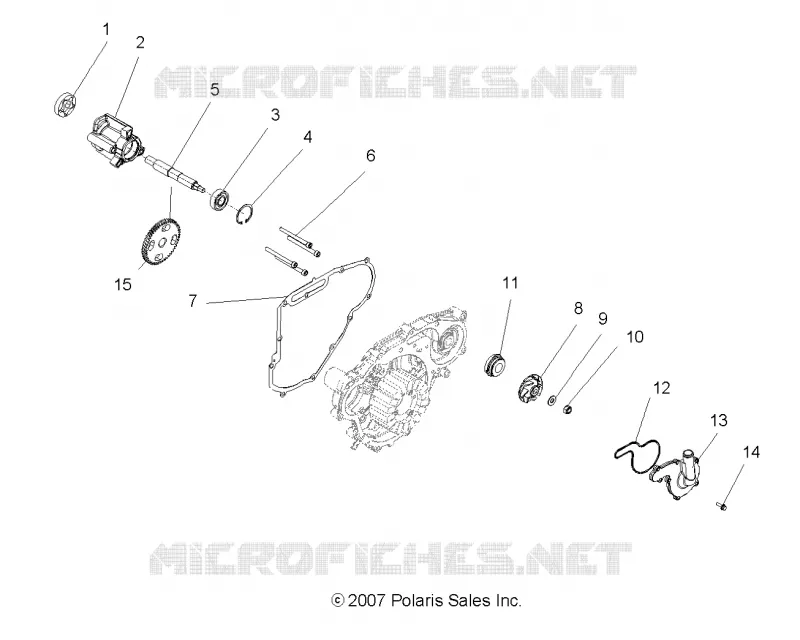

OIL PUMP AND WATER PUMP
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
PISTON CYLINDER
OIL PUMP AND WATER PUMP
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
-
KIT OIL PUMP [INCL. 1-6]
2203012
$356,99 Unit Price incl. VAT
1
Asm. Gerotor
1202588
1204577
$120,74 Unit Price incl. VAT
2
HOUSING OIL PUMP
5135094
2203012
$356,99 Unit Price incl. VAT
3
BEARING BALL
3514561
$16,79 Unit Price incl. VAT
4
RING RETAINING
7710531
$9,44 Unit Price incl. VAT
5
SHAFT OIL/WATER PUMP
5135650
$141,74 Unit Price incl. VAT
6
SCR-M6X1.0X70MM SOC/CAP-Y/D
7517807
$9,44 Unit Price incl. VAT
7
GASKET COVER MAG
5812936
$68,24 Unit Price incl. VAT
8
IMPELLER WATER PUMP
5433684
$57,74 Unit Price incl. VAT
9
WASHER
7555874
$4,19 Unit Price incl. VAT
10
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
11
SEAL WATER PUMP
3610075
$131,24 Unit Price incl. VAT
12
SEAL WATER PUMP
5812571
$14,69 Unit Price incl. VAT
13
Cover Water Pump
5631882
Not Available
14
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
