WIRE HARNESSES FOR SPORTSMAN 800 HO EFI - A09MN76AX/AZ FROM 2009

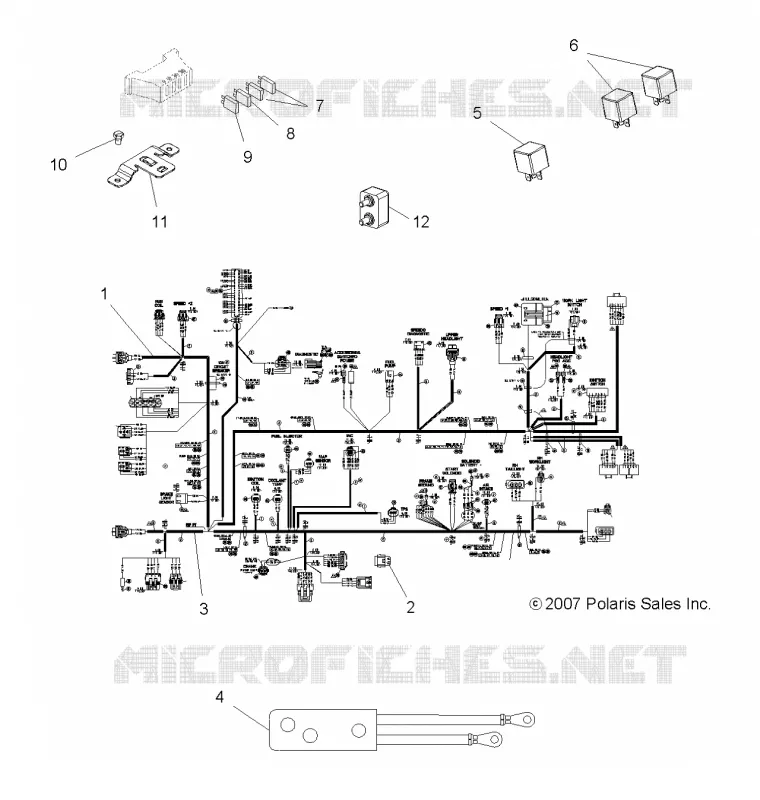

WIRE HARNESSES

1

Decal Fuse Block

7171032

Not Available

1

Harness Main [Incl. 1-3 7-9 12 All Kits Decal]

2410976

$1 448,99 Unit Price incl. VAT

2

Kit Harness Resistor Module

2204890

$257,24 Unit Price incl. VAT

3

KIT FUSIBLE LINK 1.0 MM

2202670

$68,24 Unit Price incl. VAT

3

KIT FUSIBLE LINK .8 MM

2202607

$73,49 Unit Price incl. VAT

3

Kit Harness CPS

2878077

$220,49 Unit Price incl. VAT

3

KIT HARNESS T-BAP

2875542

$220,49 Unit Price incl. VAT

3

KIT HARNESS ENGINE TEMP

2875543

$209,99 Unit Price incl. VAT

3

Kit Harness TPS

2203801

$220,49 Unit Price incl. VAT

4

Harness Winch Prewire

2410837

$173,24 Unit Price incl. VAT

5

Relay

4011141

$141,74 Unit Price incl. VAT

6

RELAY MICRO SPST

4010948

$62,99 Unit Price incl. VAT

7

FUSE 20 AMP

4011683

$18,89 Unit Price incl. VAT

8

FUSE 15 AMP

4011682

$15,74 Unit Price incl. VAT

9

Fuse 5 Amp

4011681

$15,74 Unit Price incl. VAT

10

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$9,44 Unit Price incl. VAT

11

Bracket Fuse Block

5250236

$12,59 Unit Price incl. VAT

12

BREAKER-CIRCUIT 20 AMP SEALED

2410881

$141,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
